SKU: TPR.INT.6X100MM

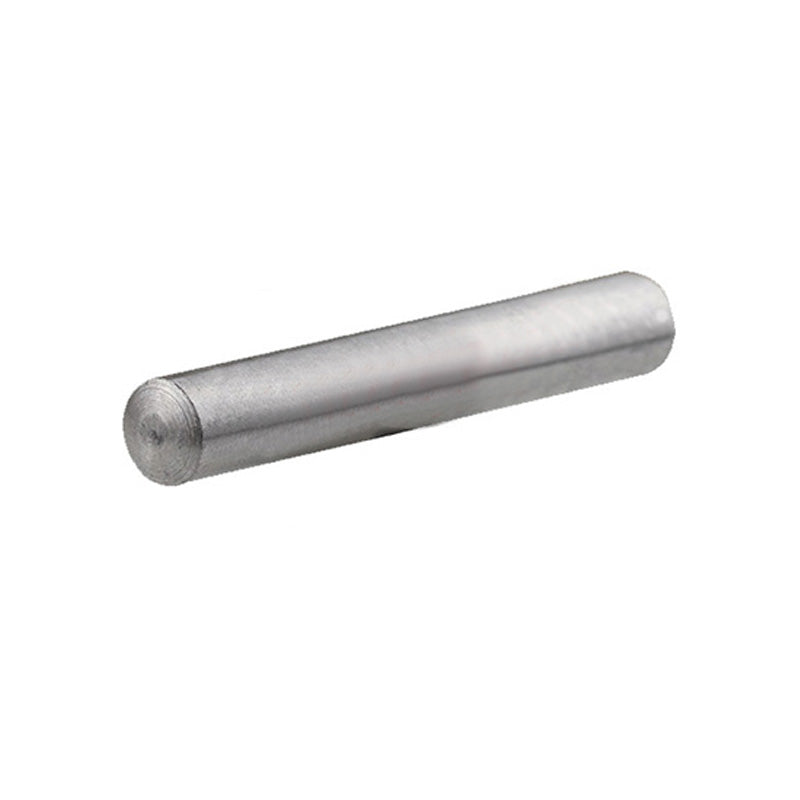

Metric Mild Steel Internally Threaded Taper Pin 6x100mm - Allow 2-3 Days
Metric Mild Steel Internally Threaded Taper Pin 6x100mm - Allow 2-3 Days
Regular price
Rs. 706.66
Regular price
Sale price
Rs. 706.66
Taxes included.
In stock
Price Break
5+
Rs. 699.59
10+
Rs. 671.33
20+
Rs. 657.19
50+
Rs. 635.99
100+
Rs. 621.86
500+
Rs. 586.53
1000+
Rs. 494.66
Description
Description
Internally Threaded Mild Steel Taper Pins: These taper pins are internally extractable which means that they are internally threaded for easier removal. The pin is simply inserted into an application and then hammered until tightly installed. To remove a pin from an application, an extraction tool can be tightened into the internal thread and used to unseat the pin.
Benefits: Quick removal and re-useable
- Brand / Quality:
- Simply Taper Pins - High Quality
- Inside Diameter:
- 6mm
- Length:
- 100mm
- Material:
- Mild Steel

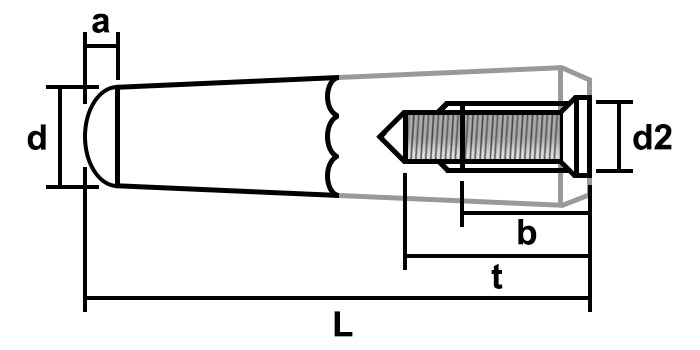

Technical
Technical
| d | 6mm |
|---|---|
| L | 100mm |
| d Tolerance | +0.00 -0.048mm |
| d2 | M4 |
| b | 6mm |
| t | 10mm |
| a | 0.8mm |
| Material | Mild Steel |
| DIN | DIN7978A |
| Type | Internally Threaded |
| Weight per pin | 0.0222kg |
