SKU: TPR.EXT.20X160MM

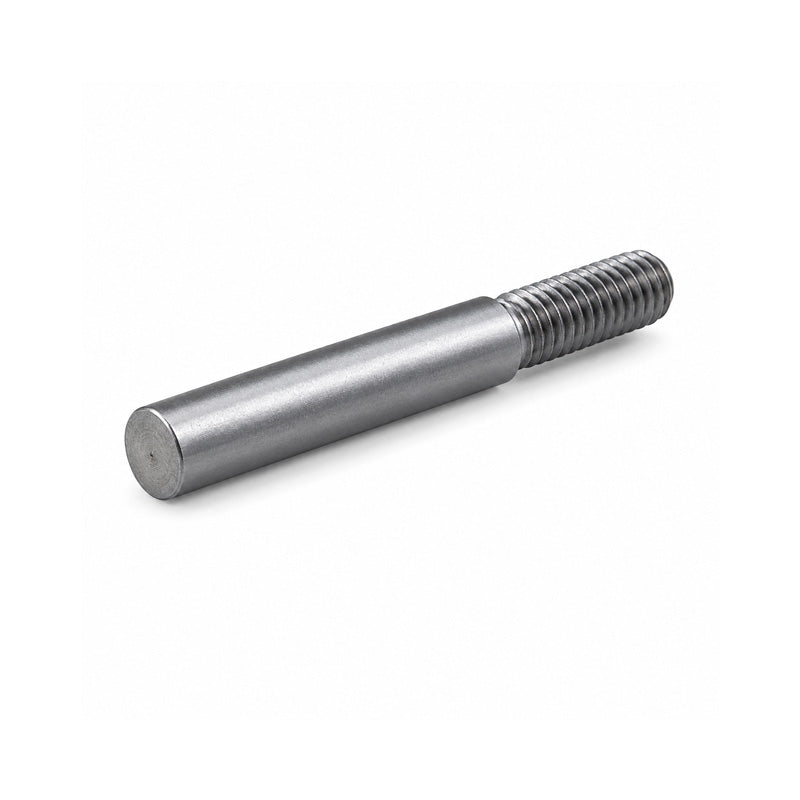

Metric Mild Steel Externally Threaded Taper Pin 20x160mm - Allow 2-3 Days
Metric Mild Steel Externally Threaded Taper Pin 20x160mm - Allow 2-3 Days
Regular price
Rs. 3,400.18
Regular price
Sale price
Rs. 3,400.18
Taxes included.
In stock
Price Break
5+
Rs. 3,366.18
10+
Rs. 3,230.17
20+
Rs. 3,162.17
50+
Rs. 3,060.16
100+
Rs. 2,992.16
500+
Rs. 2,822.15
1000+
Rs. 2,380.13
Description
Description
Externally Threaded Mild Steel Taper Pins: These taper pins are externally extractable which means that they are externally threaded for easier removal. The pin is simply inserted into an application and then hammered until tightly installed. To remove a pin from an application, a hex nut can be tightened onto the external thread and used to unseat the pin.
Benefits: Quick removal and re-useable
- Brand / Quality:
- Simply Taper Pins - High Quality
- Inside Diameter:
- 20mm
- Length:
- 160mm
- Material:
- Mild Steel

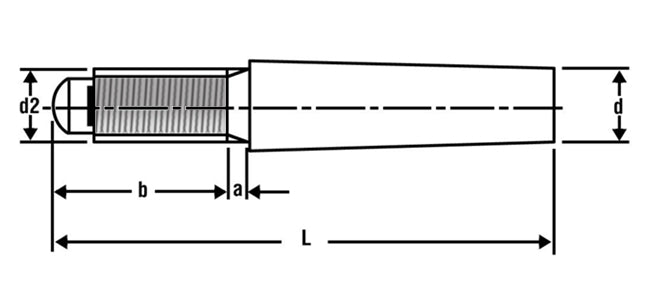

Technical
Technical
| d | 20mm |
|---|---|
| L | 160mm |
| d Tolerance | +0.00 -0.084mm |
| d2 | M16 |
| a | 6mm |
| b min | 35mm |
| b max | 39mm |
| Material | Mild Steel |
| DIN | DIN7977 |
| Type | Externally Threaded |
| Weight per pin | 0.3946kg |
