SKU: TMMA80-SKF

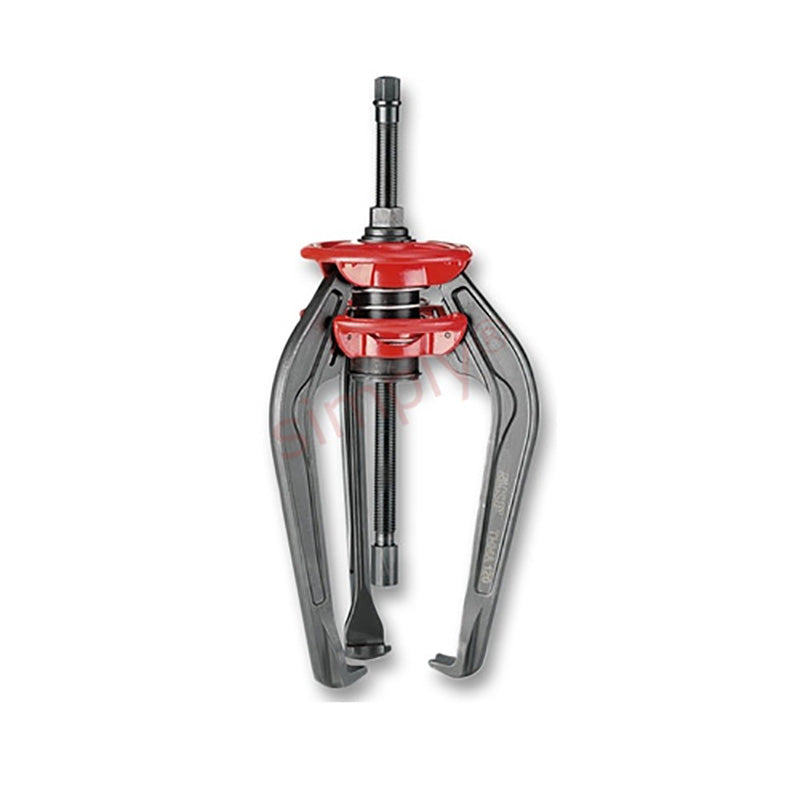

SKF TMMA80 Mechanical EasyPull 52-200mm / 2.0-7.8in
SKF TMMA80 Mechanical EasyPull 52-200mm / 2.0-7.8in
Regular price
Rs. 66,263.79
Regular price
Sale price
Rs. 66,263.79
Taxes included.
Equivalent to: TMMA5
In stock
Price Break
10+
Rs. 58,974.77
19+
Rs. 55,661.58
29+
Rs. 54,998.95
39+
Rs. 54,336.31
49+
Rs. 53,673.67
74+
Rs. 53,011.03
99+
Rs. 49,697.84
199+
Rs. 49,035.20
249+
Rs. 48,372.57
499+
Rs. 47,709.93
999+
Rs. 46,384.65
Description
Description
|
SKF Mechanical EasyPull TMMA Series: Equipped with spring-operated arms and a solid design, SKF's patented EasyPull is one of the most user-friendly and safe tools on the market. Ergonomically designed, the spring-operated arms enable the user to position the puller behind the component with just one movement. The unique red rings spring-operated opening mechanism allows the EasyPull to be placed behind the component with one movement of the hands Benefits: Sturdy design allows dismounting of components even in the tightest application in a safe manner. Double hexagonal heads allow easier application of withdrawal force. Note: Self-locking arms help prevent the risk of puller slipping under load |
Equivalent: TMMA5
- Brand / Quality:
- SKF - High Quality
Technical
Technical
| Width of Grip External, min | 52mm (2.0 in.) |
|---|---|
| Width of Grip External, max | 200mm (7.8 in.) |
| Effective Arm Length | 200mm (7.8 in.) |
| Maximum Withdrawal Force | 80 kN (9.0 ton US) |
| Claw Height | 9.8mm (0.39 in.) |
| Claw Length | 18mm (0.7 in.)Claw Width |
| 28mm (1.1 in.) | Hexagon on Puller or Adapter |
| 30mm | Hexagon on Mechanical Spindle |
| 22mm | Max Torque |
| 175 Nm (125 lbf ft) | Diameter Nose Piece |
| 26mm (1.0 in.) | N/A |
