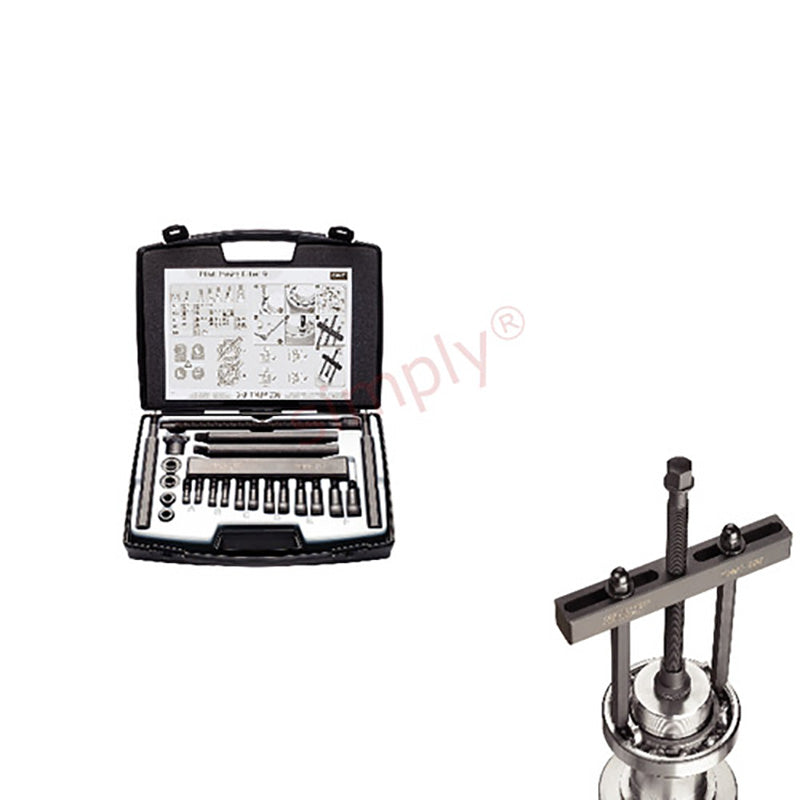

SKF TMHP30/600 Hydraulically Assisted Heavy Duty Jaw Pullers 290-500mm / 11.4-19.7in
SKF TMHP30/600 Hydraulically Assisted Heavy Duty Jaw Pullers 290-500mm / 11.4-19.7in
Regular price
Rs. 956,686.75
ex VAT
Regular price
Sale price
Rs. 956,686.75
ex VAT
In stock
Price Break
10+
Rs. 851,451.21
19+
Rs. 803,616.87
29+
Rs. 794,050.00
39+
Rs. 784,483.14
49+
Rs. 774,916.27
74+
Rs. 765,349.40
99+
Rs. 717,515.06
199+
Rs. 707,948.20
249+
Rs. 698,381.33
499+
Rs. 688,814.46
999+
Rs. 669,680.73
Couldn't load pickup availability
Description
Description
|
SKF Hydraulically Assisted Heavy Duty Jaw Pullers TMHP Series: The SKF hydraulically-assisted pullers TMHP 15, TMHP 30 and TMHP 50 provide new combined forces of puller power and safety. They are self-centring pullers for the occasions when large forces are inevitable. Pantograph system for ultimate alignment of withdrawal forces and minimised risk of damaging shaft or bearing. Benefits: Extreme forces applied with ease (self-centring, lifting handle, eye bolt, etc.) |
- Brand / Quality:
- SKF - High Quality
Technical
Technical
| Width of Grip | 290-500mm (11.4-19.7 in.) |
|---|---|
| Effective Length of Arms | 600mm (23.6 in.) |
| Claw Height | 35mm (1.4 in.) |
| Stroke | 50mm (2 in.) |
| Maximum Working Pressure Hydraulic Cylinder | 80 Mpa (11 600 psi) |
| Maximum Withdrawal Force | 300 kN (34 US ton) |
