SKU: TL72-L-100

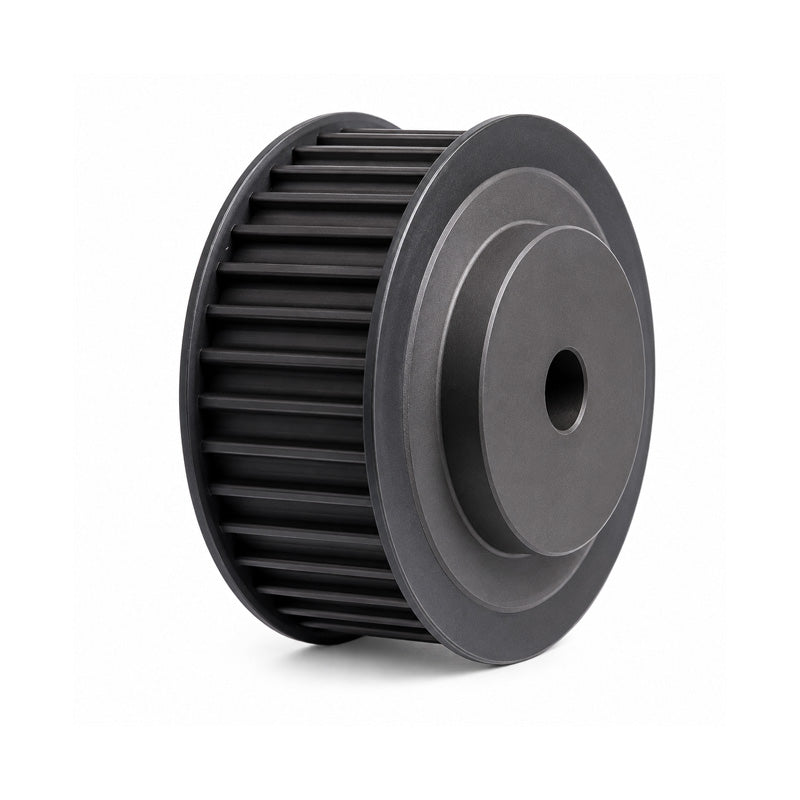

TL72-L-100 - 3/8 inch Pitch 72 Tooth Tapered Bore Cast Iron Timing Pulley for 1 inch Wide Belts
TL72-L-100 - 3/8 inch Pitch 72 Tooth Tapered Bore Cast Iron Timing Pulley for 1 inch Wide Belts
Regular price
Rs. 7,601.75
Regular price
Sale price
Rs. 7,601.75
Taxes included.
Equivalent to: TL72L100
In stock
Price Break
10+
Rs. 6,765.56
19+
Rs. 6,385.47
29+
Rs. 6,309.45
39+
Rs. 6,233.44
49+
Rs. 6,157.42
74+
Rs. 6,081.40
99+
Rs. 5,701.31
199+
Rs. 5,625.30
249+
Rs. 5,549.28
499+
Rs. 5,473.26
999+
Rs. 5,321.23
Description
Description
Imperial Taper Bore Timing Pulley: Imperial timing pulleys are available in both taper and pilot bore. The pulleys depending on the size are made from either Aluminium 6082, C45 Steel with black oxide treated surface or Cast Iron EN-GJL-200 and black phosphate. Where applicable flanges are made from S235JR Steel. Timing belt life can be increased with the proper pulley reducing running costs of your machinery.
Benefits: Available in a wide range of diameters and number of teeth along with standard widths.
Equivalent: TL72L100
- Brand / Quality:
- Drive-Flex - High Quality
- Teeth:
- 72
- Material:
- Cast Iron
- Belt Width Approx:
- 25.4mm = 1 inch
- Pitch:
- 9.53mm = 0.375 (3/8) inch
- Item Type:
- Flangeless Tapered Bore Pulley

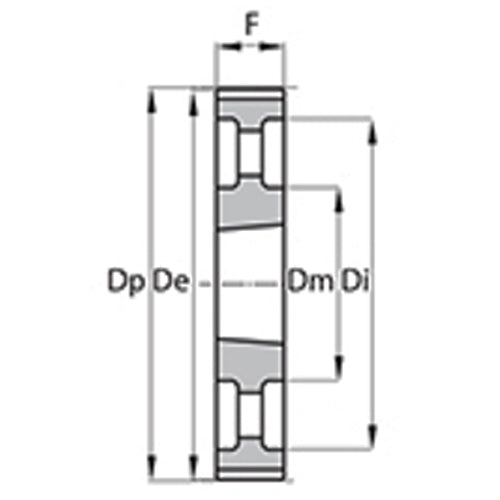

Technical
Technical
| No. teeth | 72 |
|---|---|
| Dp | 218.3mm |
| De | 217.53mm |
| Dm | 106mm |
| F | 32mm |
| Material | Cast Iron |
| Bore | Tapered Bore |
| Belt Width | 25.4mm = 1 inch |
| Pitch | 9.53mm = 0.375 (3/8) inch |
| S | 32mm |
| Di | 202mm |
| Bush | 2012 |
