SKU: TEN-ARM-SE38-DUN

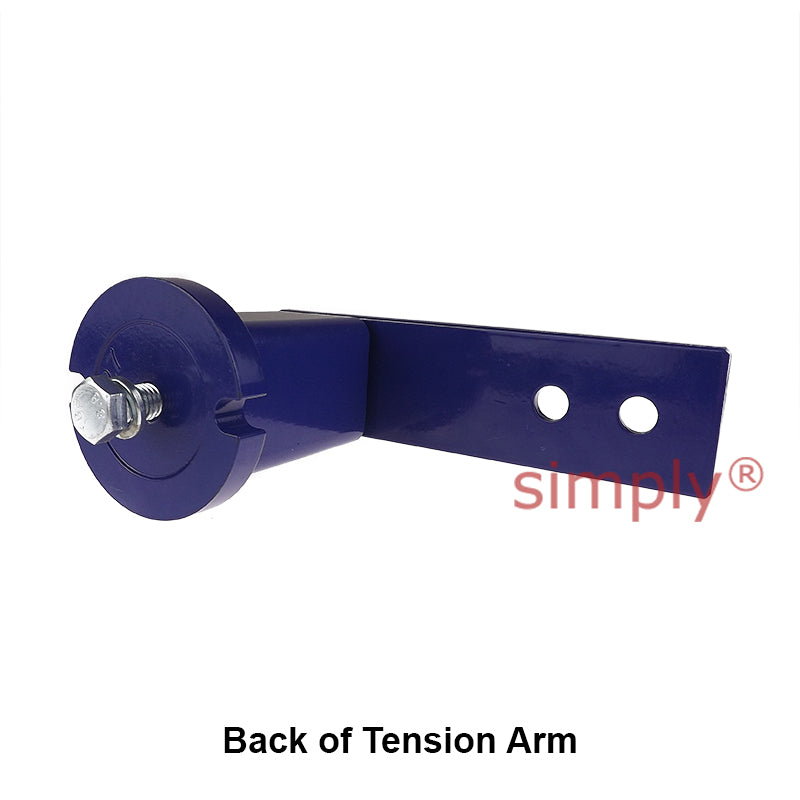

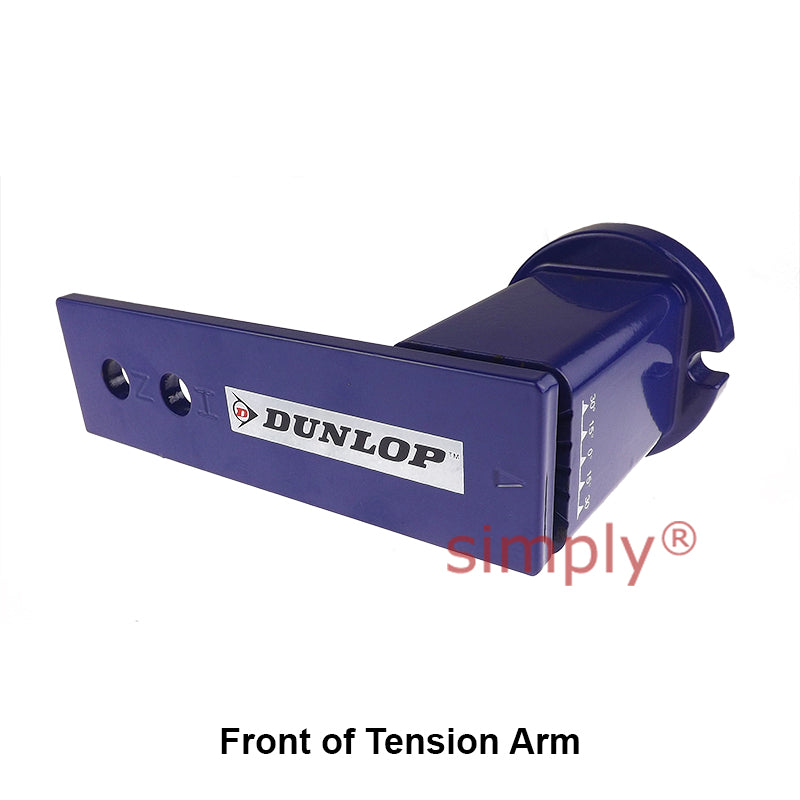

Dunlop SE38 Chain and V-Belt Tension Arm
Dunlop SE38 Chain and V-Belt Tension Arm
Regular price
Rs. 9,488.75
Regular price
Sale price
Rs. 9,488.75
Taxes included.
In stock
Price Break
10+
Rs. 8,444.99
19+
Rs. 7,970.55
29+
Rs. 7,875.66
39+
Rs. 7,780.78
49+
Rs. 7,685.89
74+
Rs. 7,591.00
99+
Rs. 7,116.56
199+
Rs. 7,021.68
249+
Rs. 6,926.79
499+
Rs. 6,831.90
999+
Rs. 6,642.13
Description
Description
Dunlop Chain and V-Belt Tension Arm: The tensioning element with the specification SE (SE 11 to SE 45) is the mostly used standard unit for tensioning all kinds of chain and belt drives.
Benefits: Suitable for applications in temperature range from -40 deg C to +80 deg C
- Brand / Quality:
- Dunlop - Good Quality
- Thread Size:
- M16
- Part No:
- SE38
Technical
Technical
| Part No. | SE38 |
|---|---|
| D | 95mm |
| E | 140 (+2/-0.5)mm |
| G | 10mm |
| H | M16 |
| J<sup>1</sup> | 175mm |
| J<sup>2</sup> | 175mm |
| K | 60mm |
| L | 205mm |
| M | 40mm |
| N | 66mm |
| O | 15mm |
| P | 12.5mm |
| T | 20.5mm |
| U | 42mm |
