SKU: TEN-ARM-SE18-DUN

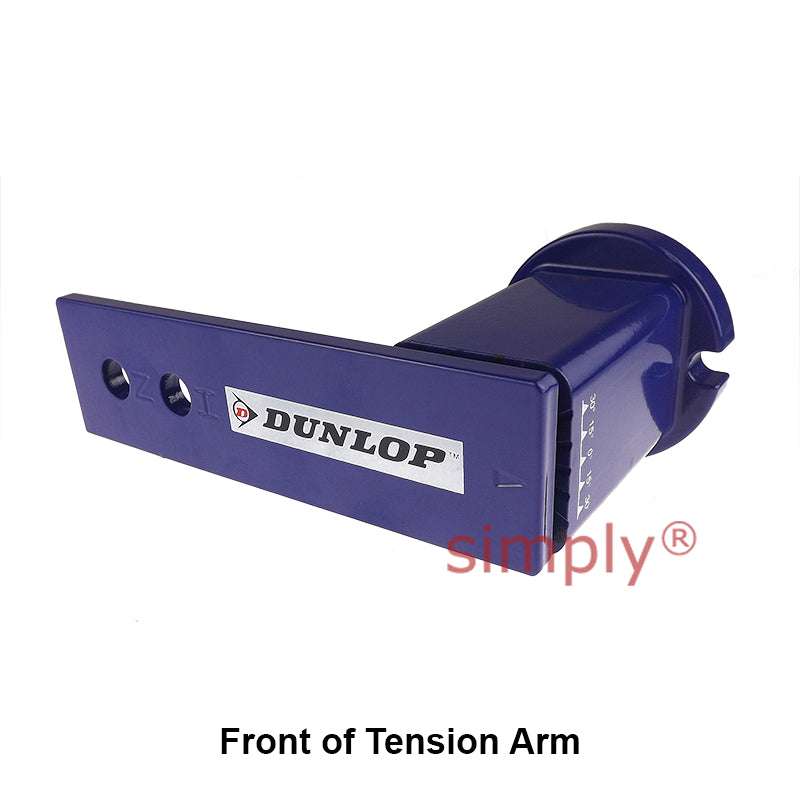

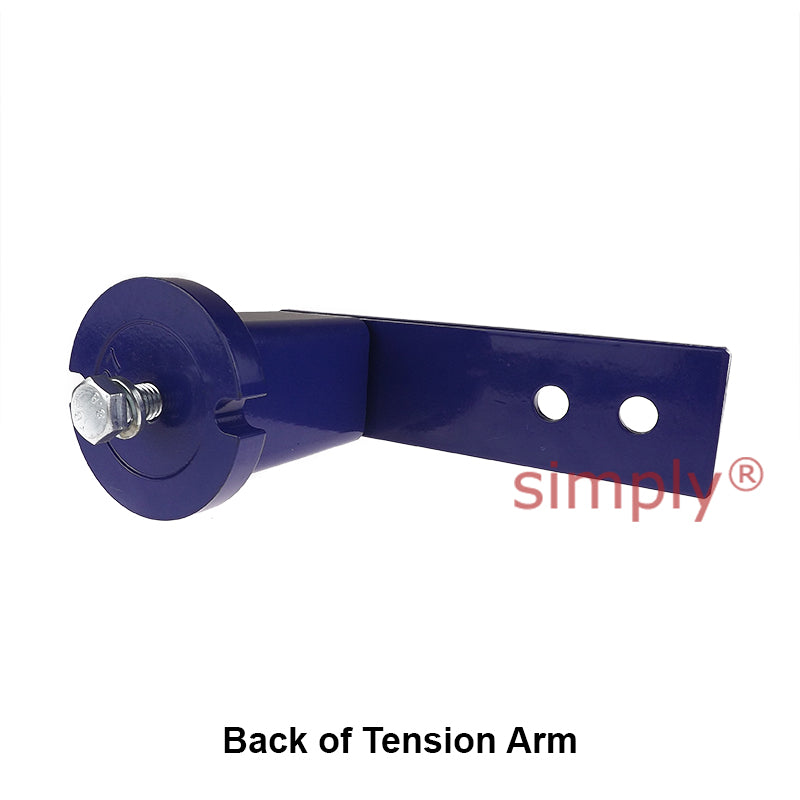

Dunlop SE18 Chain and V-Belt Tension Arm
Dunlop SE18 Chain and V-Belt Tension Arm
Regular price
Rs. 3,662.54
ex VAT
Regular price
Sale price
Rs. 3,662.54
ex VAT
In stock
Price Break
10+
Rs. 3,259.66
19+
Rs. 3,076.53
29+
Rs. 3,039.91
39+
Rs. 3,003.28
49+
Rs. 2,966.66
74+
Rs. 2,930.03
99+
Rs. 2,746.91
199+
Rs. 2,710.28
249+
Rs. 2,673.65
499+
Rs. 2,637.03
999+
Rs. 2,563.78
Couldn't load pickup availability
Description
Description
Dunlop Chain and V-Belt Tension Arm: The tensioning element with the specification SE (SE 11 to SE 45) is the mostly used standard unit for tensioning all kinds of chain and belt drives.
Benefits: Suitable for applications in temperature range from -40 deg C to +80 deg C
- Brand / Quality:
- Dunlop - Good Quality
- Thread Size:
- M10
- Part No:
- SE18
Technical
Technical

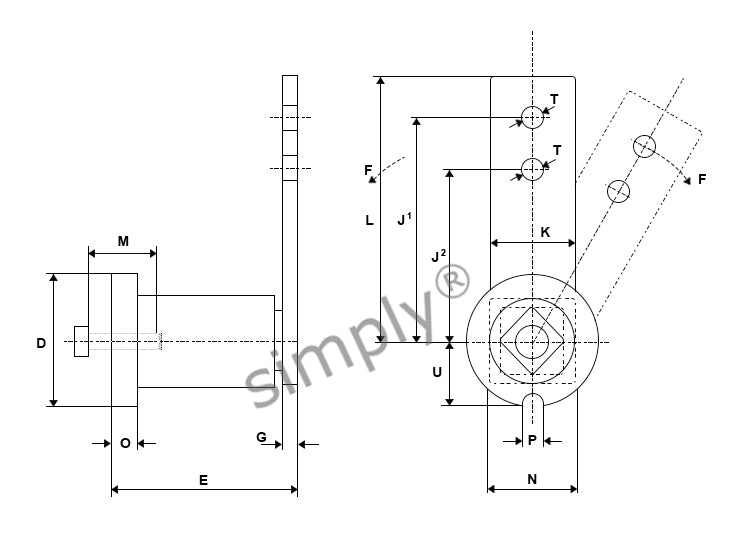

| Part No. | SE18 |
|---|---|
| D | 58mm |
| E | 79 (+1.5/-0.5)mm |
| G | 7mm |
| H | M10 |
| J<sup>1</sup> | 100mm |
| J<sup>2</sup> | 100mm |
| K | 30mm |
| L | 115mm |
| M | 30mm |
| N | 35mm |
| O | 10.5mm |
| P | 8.5mm |
| T | 10.5mm |
| U | 25.3mm |
