SKU: TC3648-INA

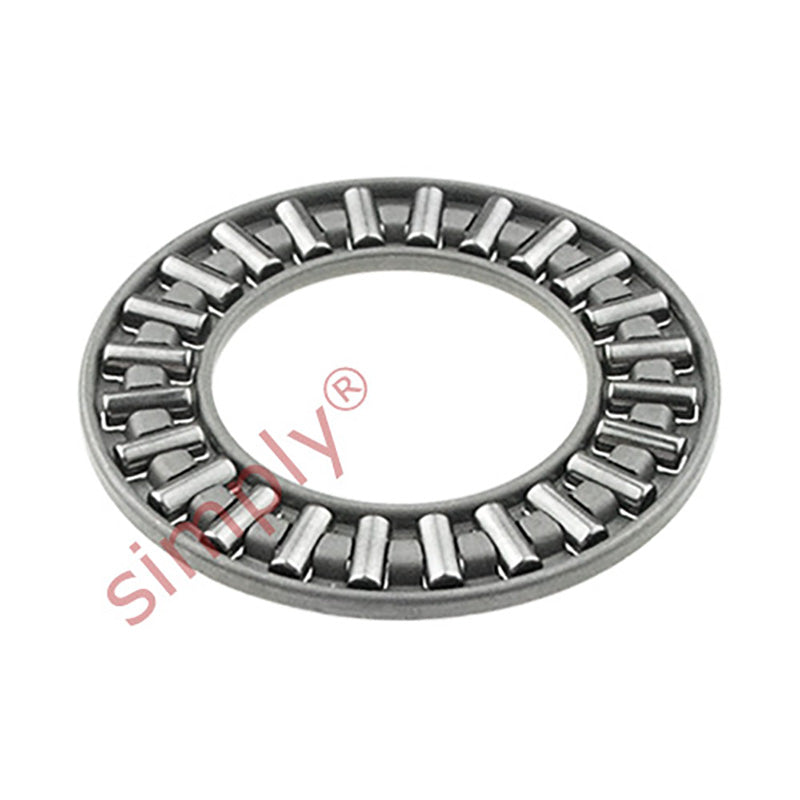

INA NTA3648 Needle Roller Cage Only 2.25x3x0.0781 inch
INA NTA3648 Needle Roller Cage Only 2.25x3x0.0781 inch
Regular price
Rs. 3,429.88
ex VAT
Regular price
Sale price
Rs. 3,429.88
ex VAT
Equivalent to: NTC3648 NTA3648
In stock
Price Break
5+
Rs. 3,395.58
10+
Rs. 3,258.39
20+
Rs. 3,189.79
50+
Rs. 3,086.89
100+
Rs. 3,018.29
500+
Rs. 2,846.80
1000+
Rs. 2,400.92
Couldn't load pickup availability
Description
Description
|
NTA Imperial Series Needle Roller Thrust Bearings: Needle roller cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the TR series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing. |
Equivalent: NTC3648 NTA3648
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 57.15mm = 2.25 (2-1/4) inch
- Outside Diameter:
- 76.2mm = 3 inch
- Width:
- 1.98mm = 0.078 (5/64) inch
Technical
Technical
| d | 2.25 inch |
|---|---|
| D | 3 inch |
| Eb | 0.0781 inch |
| Dw | 2.82 inch |
| dw | 2.34 inch |
| Dynamic load | 24.78 kN |
| Static load | 142.34 kN |
| Limiting speed | 5600 rpm |
| Weight | 0.017252 kg |
