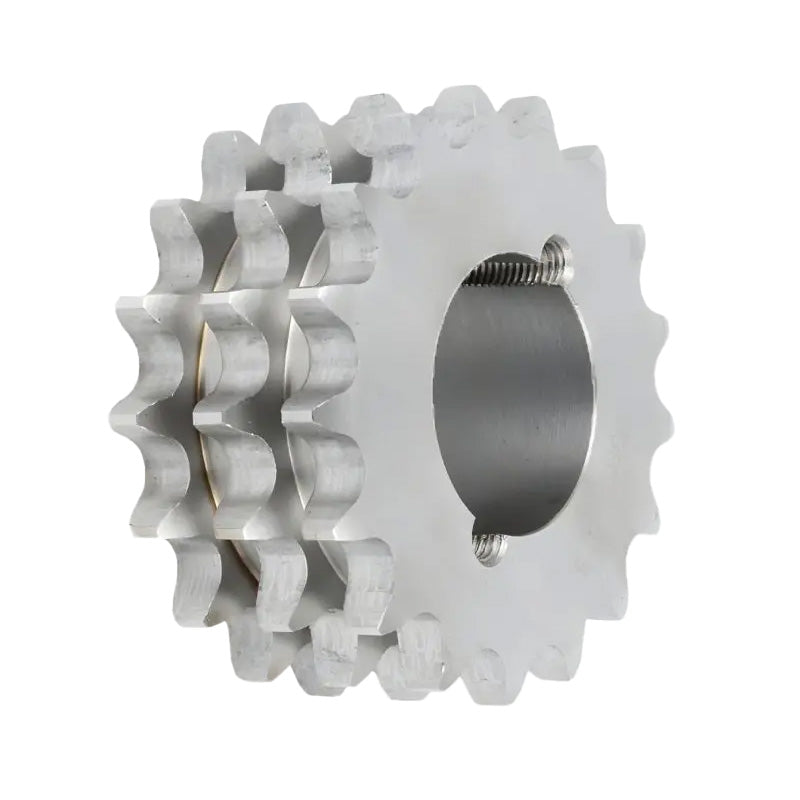

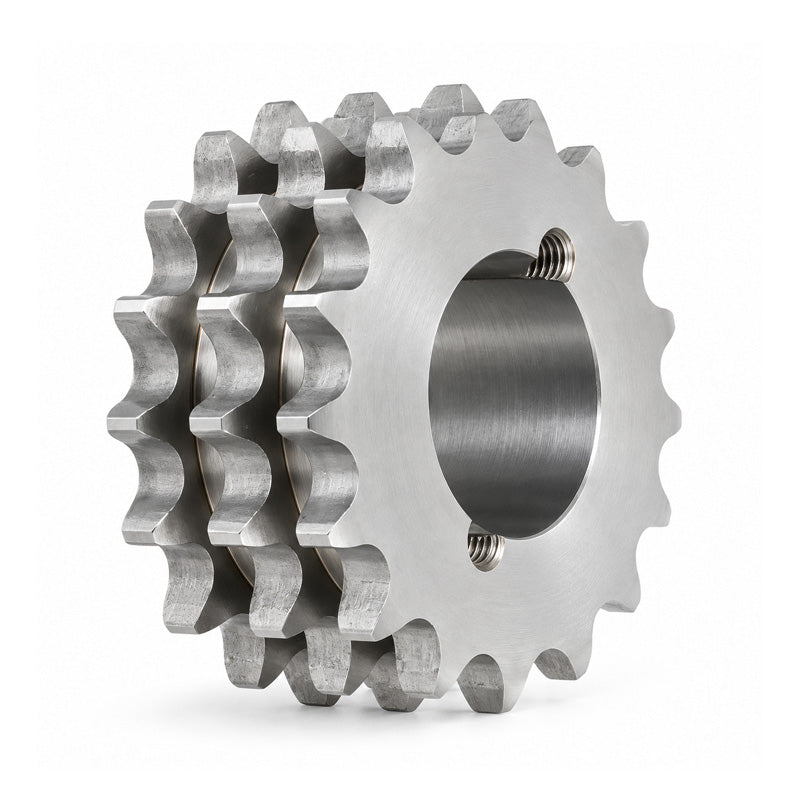

• 27 Tooth 16B Triplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain (Bush not Incl.)
1 1

SKU: TBS-T-16B-27

27 Tooth 16B Triplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain (Bush not Incl.)

27 Tooth 16B Triplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain (Bush not Incl.)
Rs. 23,574.39 ex VAT
Rs. 23,574.39 ex VAT
Sale Sold out

Equivalent to: 16B3 TS83-27 83-27

In stock

Price Break
10+ Rs. 20,981.21
19+ Rs. 19,802.49
29+ Rs. 19,566.74
39+ Rs. 19,331.00
49+ Rs. 19,095.26
74+ Rs. 18,859.51
99+ Rs. 17,680.79
199+ Rs. 17,445.05
249+ Rs. 17,209.30
499+ Rs. 16,973.56
999+ Rs. 16,502.07
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: 16B3 TS83-27 83-27
Brand / Quality:
Major Brand - High Quality
Number of Teeth:
27
Chain Pitch:
25.4mm = 1 inch
Item Type:
BS European Standard

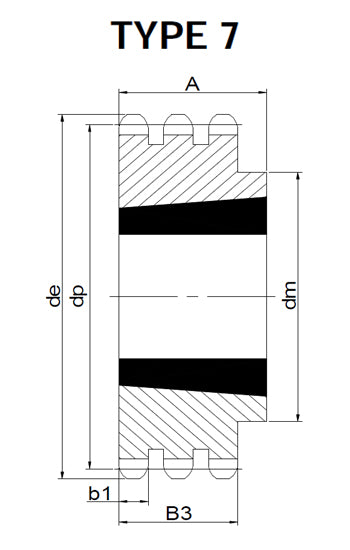

Technical
Tooth Radius r3 26mm
Chamfer c 2.5mm
Tooth Width b1 15.8mm
Tooth Width B1 16.2mm
Tooth Width B2 47.7mm
Tooth Width B3 79.6mm
Pitch 25.4mm
Width Between Inner 17.02mm
Roller Diameter 15.88mm
No. of Teeth 27
Outer Diameter de 229.6mm
Pitch Diameter dp 218.79mm
Hub Diameter dm 175mm
Length Through Bore A 89mm
Reference 83-27
Taper Bush 3535
