SKU: TBS-T-12B-45

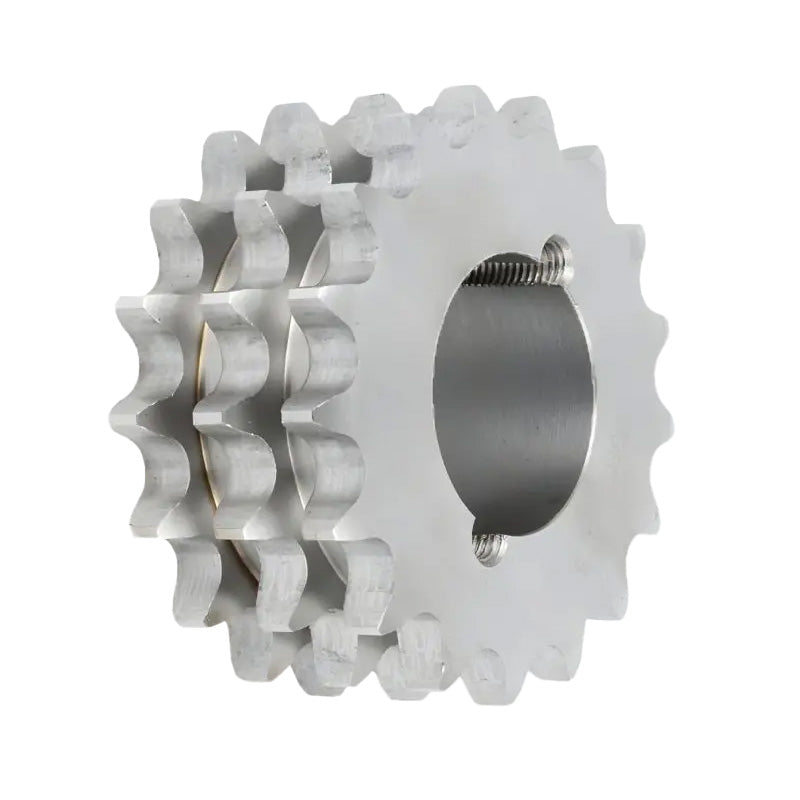

45 Tooth 12B Triplex Sprocket Tapered Locking Bush Type for 3/4 inch Pitch Chain (Bush not Incl.)
45 Tooth 12B Triplex Sprocket Tapered Locking Bush Type for 3/4 inch Pitch Chain (Bush not Incl.)
Regular price
Rs. 23,898.54
Regular price
Sale price
Rs. 23,898.54
Taxes included.
Equivalent to: TS63-45 12B3 TS63-45 63-45
In stock
Price Break
10+
Rs. 21,269.70
19+
Rs. 20,074.77
29+
Rs. 19,835.79
39+
Rs. 19,596.80
49+
Rs. 19,357.82
74+
Rs. 19,118.83
99+
Rs. 17,923.91
199+
Rs. 17,684.92
249+
Rs. 17,445.93
499+
Rs. 17,206.95
999+
Rs. 16,728.98
Description
Description
Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: TS63-45 12B3 TS63-45 63-45
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: TS63-45 12B3 TS63-45 63-45
- Brand / Quality:
- Major Brand - High Quality
- Number of Teeth:
- 45
- Pitch:
- 19.05mm = 0.75 (3/4) inch
- Item Type:
- BS European Standard
Technical
Technical
| No. of Teeth | 45 |
|---|---|
| Pitch Diameter dp | 273.1mm |
| Outer Diameter de | 283mm |
| Diameter Over Chain A | 291mm |
| Hub Diameter N | 140mm |
| Tooth Width B3 | 49.8mm |
| Bore Length L | 50.8mm |
| Taper Bush Series | <a href="advanced_search_result.php?&keywords=3020+taperlock">3020<span style="color:blue"> Click Here</span></a> |
| Weight | 16.485 kg |
