SKU: TBS-T-10B-19

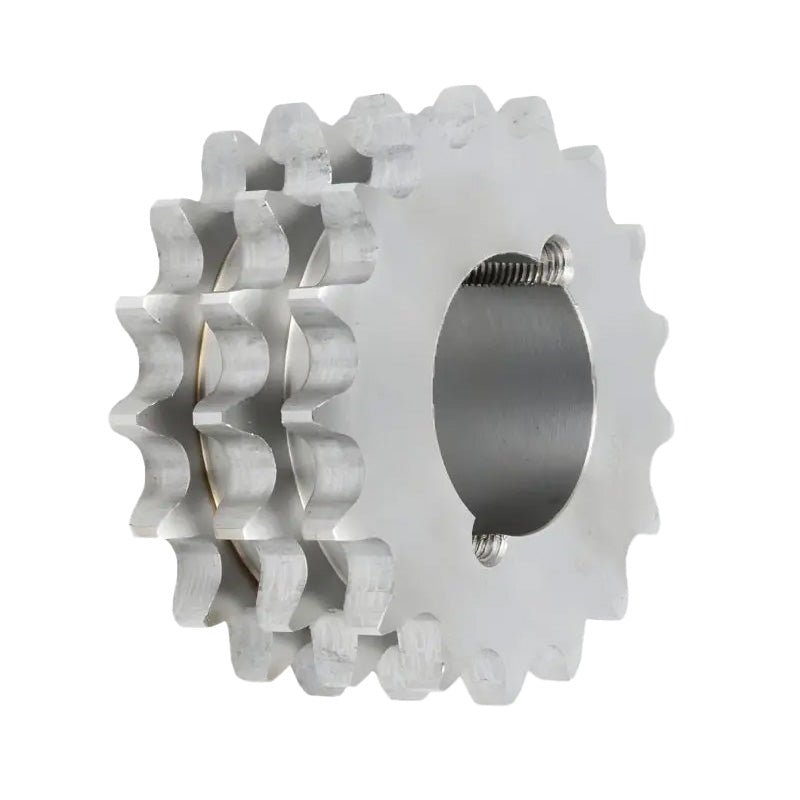

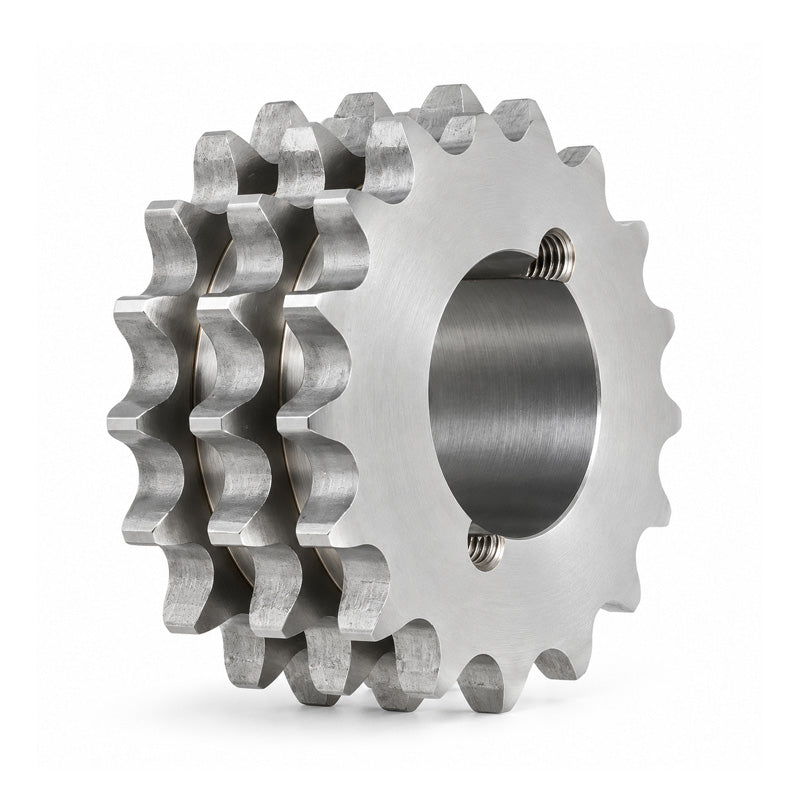

19 Tooth 10B Triplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
19 Tooth 10B Triplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
Regular price
Rs. 3,954.50
Regular price
Sale price
Rs. 3,954.50
Taxes included.
Equivalent to: TS53-19 10B3 TS51-19 51-19
In stock
Price Break
10+
Rs. 3,519.51
19+
Rs. 3,321.78
29+
Rs. 3,282.24
39+
Rs. 3,242.69
49+
Rs. 3,203.15
74+
Rs. 3,163.60
99+
Rs. 2,965.88
199+
Rs. 2,926.33
249+
Rs. 2,886.79
499+
Rs. 2,847.24
999+
Rs. 2,768.15
Description
Description
Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: TS53-19 10B3 TS51-19 51-19
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: TS53-19 10B3 TS51-19 51-19
- Brand / Quality:
- Major Brand - High Quality
- Number of Teeth:
- 19
- Pitch:
- 15.88mm = 0.625 (5/8) inch
- Item Type:
- BS European Standard
Technical
Technical
| Tooth Radius r3 | 16mm |
|---|---|
| Chamfer c | 1.6mm |
| Tooth Width b1 | 9mm |
| Tooth Width B1 | 9.1mm |
| Tooth Width B2 | 25.5mm |
| Tooth Width B3 | 42.1mm |
| Pitch | 15.875mm |
| Width Between Inner | 9.65mm |
| Roller Diameter | 10.16mm |
| No. of Teeth | 19 |
| Outer Diameter de | 103.3mm |
| Pitch Diameter dp | 96.45mm |
| Length Through Bore A | 42.1mm |
| Reference | 53-19 |
| Taper Bush | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1615+tapered+locking+bush>1615 Click Here</a> |
