SKU: TBS-T-08B-19

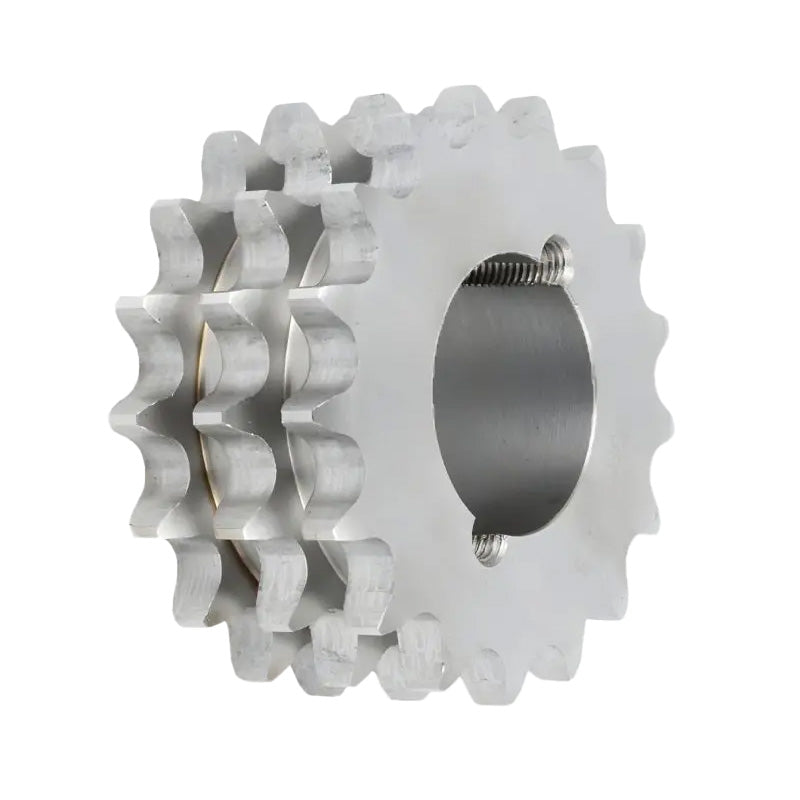

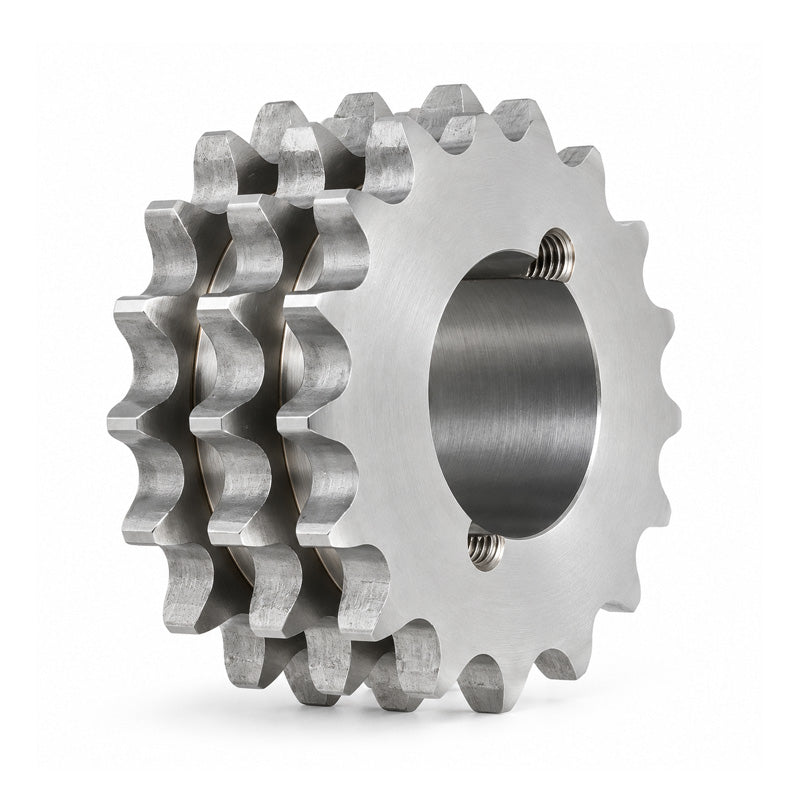

19 Tooth 08B Triplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)
19 Tooth 08B Triplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)
Regular price
Rs. 1,330.11
Regular price
Sale price
Rs. 1,330.11
Taxes included.
Equivalent to: TS43-19 08B3 TS41-19 41-19
In stock
Price Break
10+
Rs. 1,183.80
19+
Rs. 1,117.29
29+
Rs. 1,103.99
39+
Rs. 1,090.69
49+
Rs. 1,077.39
74+
Rs. 1,064.09
99+
Rs. 997.58
199+
Rs. 984.28
249+
Rs. 970.98
499+
Rs. 957.68
999+
Rs. 931.08
Description
Description
Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: TS43-19 08B3 TS41-19 41-19
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: TS43-19 08B3 TS41-19 41-19
- Brand / Quality:
- Major Brand - High Quality
- Number of Teeth:
- 19
- Pitch:
- 12.7mm = 0.5 (1/2) inch
- Item Type:
- BS European Standard
Technical
Technical
| Tooth Radius r3 | 13mm |
|---|---|
| Chamfer c | 1.3mm |
| Tooth Width b1 | 7mm |
| Tooth Width B1 | 7.2mm |
| Tooth Width B2 | 21mm |
| Tooth Width B3 | 34.9mm |
| Pitch | 12.7mm |
| Width Between Inner | 7.75mm |
| Roller Diameter | 8.51mm |
| No. of Teeth | 19 |
| Outer Diameter de | 81.7mm |
| Pitch Diameter dp | 77.16mm |
| Length Through Bore A | 34.9mm |
| Reference | 43-19 |
| Taper Bush | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1210+tapered+locking+bush>1210 Click Here</a> |
