SKU: TBS-S-16B-26

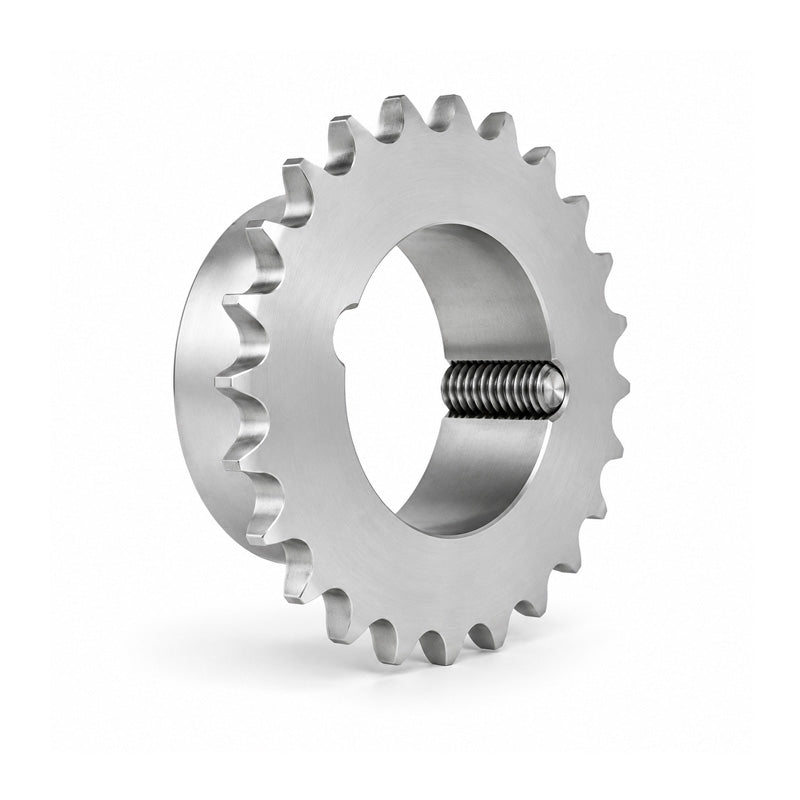

26 Tooth 16B Simplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain Bush not Incl.
26 Tooth 16B Simplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain Bush not Incl.
Regular price
Rs. 6,548.16
Regular price
Sale price
Rs. 6,548.16
Taxes included.
Equivalent to: 16B1 TS81-26 81-26
In stock
Price Break
10+
Rs. 5,827.86
19+
Rs. 5,500.45
29+
Rs. 5,434.97
39+
Rs. 5,369.49
49+
Rs. 5,304.01
74+
Rs. 5,238.53
99+
Rs. 4,911.12
199+
Rs. 4,845.64
249+
Rs. 4,780.16
499+
Rs. 4,714.68
999+
Rs. 4,583.71
Description
Description
Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: 16B1 TS81-26 81-26
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: 16B1 TS81-26 81-26
- Brand / Quality:
- Major Brand - High Quality
- Number of Teeth:
- 26
- Pitch:
- 25.4mm = 1 inch
- Item Type:
- BS European Standard
Technical
Technical
| Tooth Radius r3 | 26mm |
|---|---|
| Chamfer c | 2.5mm |
| Tooth Width b1 | 15.8mm |
| Tooth Width B1 | 16.2mm |
| Tooth Width B2 | 47.7mm |
| Tooth Width B3 | 79.6mm |
| Pitch | 25.4mm |
| Width Between Inner | 17.02mm |
| Roller Diameter | 15.88mm |
| No. of Teeth | 26 |
| Outer Diameter de | 221.6mm |
| Pitch Diameter dp | 210.72mm |
| Hub Diameter dm | 110mm |
| Length Through Bore A | 45mm |
| Reference | 81-26 |
| Taper Bush | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2517+tapered+locking+bush>2517 Click Here</a> |
