SKU: TBS-S-16B-20

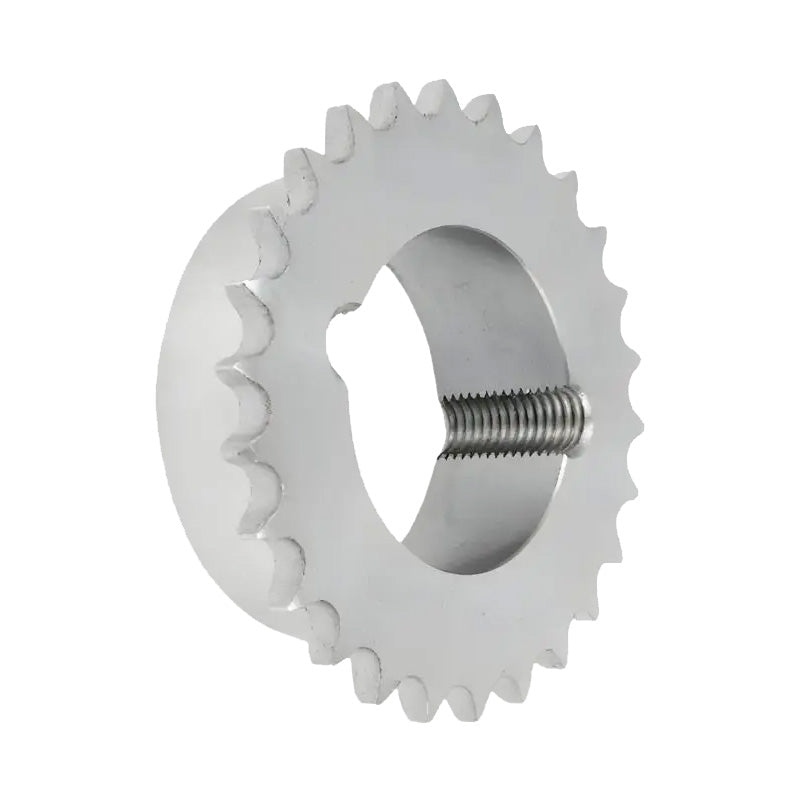

20 Tooth 16B Simplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain Bush not Incl.
20 Tooth 16B Simplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain Bush not Incl.
Regular price
Rs. 6,185.93
ex VAT
Regular price
Sale price
Rs. 6,185.93
ex VAT
Equivalent to: 16B1 TS81-20 81-20
In stock
Price Break
10+
Rs. 5,505.48
19+
Rs. 5,196.18
29+
Rs. 5,134.32
39+
Rs. 5,072.46
49+
Rs. 5,010.60
74+
Rs. 4,948.74
99+
Rs. 4,639.45
199+
Rs. 4,577.59
249+
Rs. 4,515.73
499+
Rs. 4,453.87
999+
Rs. 4,330.15
Couldn't load pickup availability
Description
Description

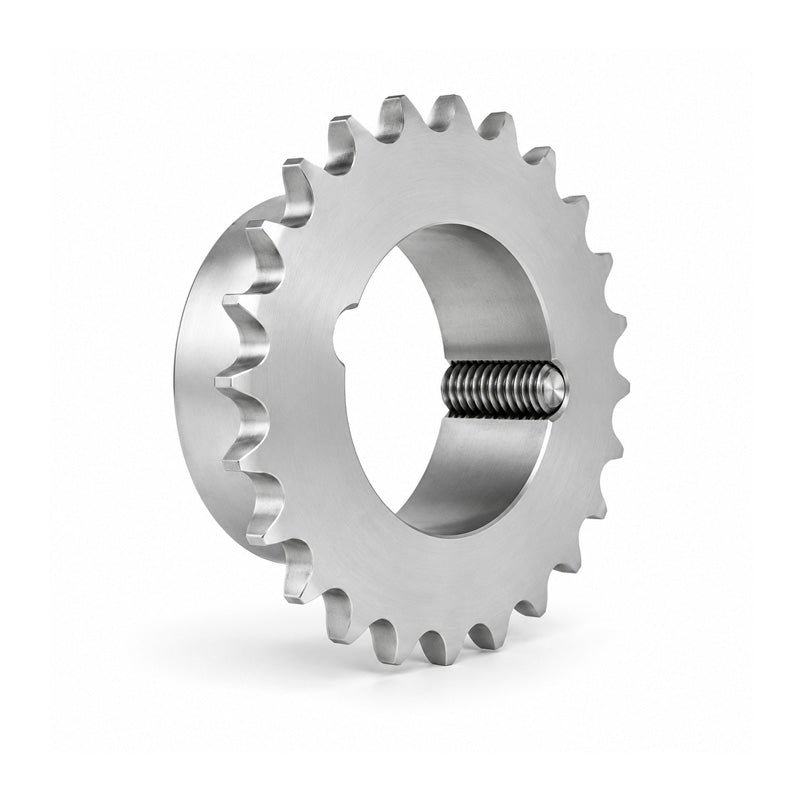

Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: 16B1 TS81-20 81-20
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: 16B1 TS81-20 81-20
- Brand / Quality:
- Major Brand - High Quality
- Number of Teeth:
- 20
- Chain Pitch:
- 25.4mm = 1 inch
- Item Type:
- BS European Standard

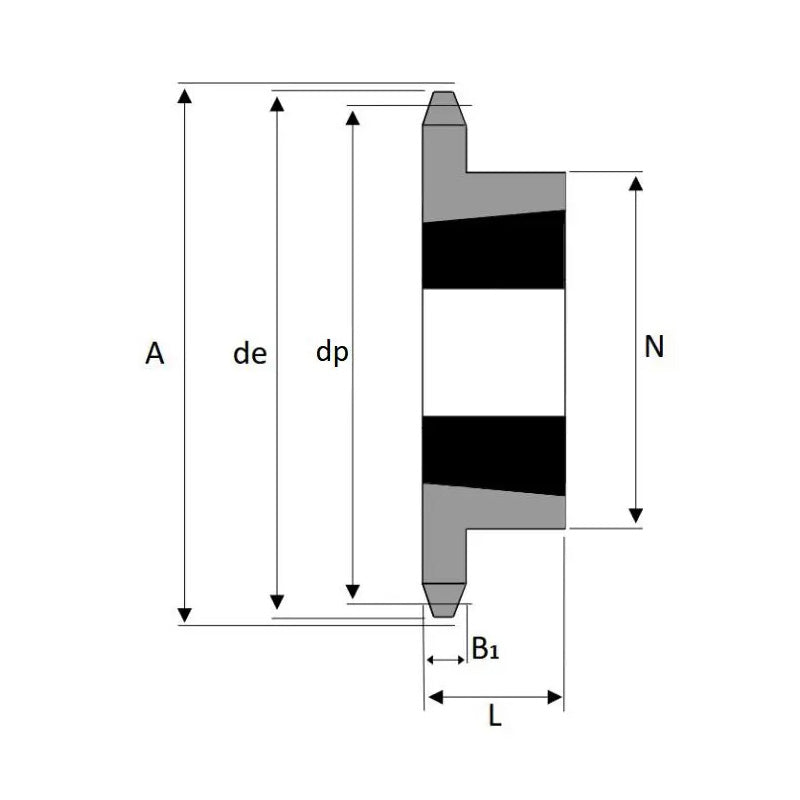

Technical
Technical
| Tooth Radius r3 | 26mm |
|---|---|
| Chamfer c | 2.5mm |
| Tooth Width b1 | 15.8mm |
| Tooth Width B1 | 16.2mm |
| Tooth Width B2 | 47.7mm |
| Tooth Width B3 | 79.6mm |
| Pitch | 25.4mm |
| Width Between Inner | 17.02mm |
| Roller Diameter | 15.88mm |
| No. of Teeth | 20 |
| Outer Diameter de | 173.2mm |
| Pitch Diameter dp | 162.38mm |
| Hub Diameter dm | 108mm |
| Length Through Bore A | 45mm |
| Reference | 81-20 |
| Taper Bush | 2517 |
