SKU: TBS-S-10B-30

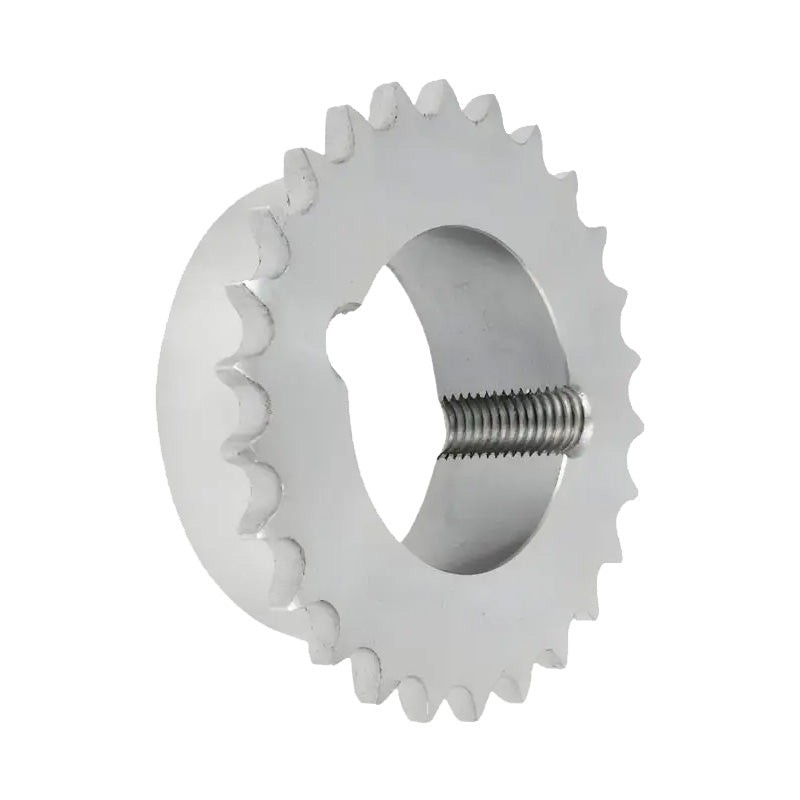

30 Tooth 10B Simplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
30 Tooth 10B Simplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
Regular price
Rs. 4,607.40
Regular price
Sale price
Rs. 4,607.40
Taxes included.
Equivalent to: TS51-30 10B1 TS51-30 51-30
In stock
Price Break
10+
Rs. 4,100.59
19+
Rs. 3,870.22
29+
Rs. 3,824.14
39+
Rs. 3,778.07
49+
Rs. 3,731.99
74+
Rs. 3,685.92
99+
Rs. 3,455.55
199+
Rs. 3,409.48
249+
Rs. 3,363.40
499+
Rs. 3,317.33
999+
Rs. 3,225.18
Description
Description
Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: TS51-30 10B1 TS51-30 51-30
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: TS51-30 10B1 TS51-30 51-30
- Brand / Quality:
- Major Brand - High Quality
- Number of Teeth:
- 30
- Pitch:
- 15.88mm = 0.625 (5/8) inch
- Item Type:
- BS European Standard

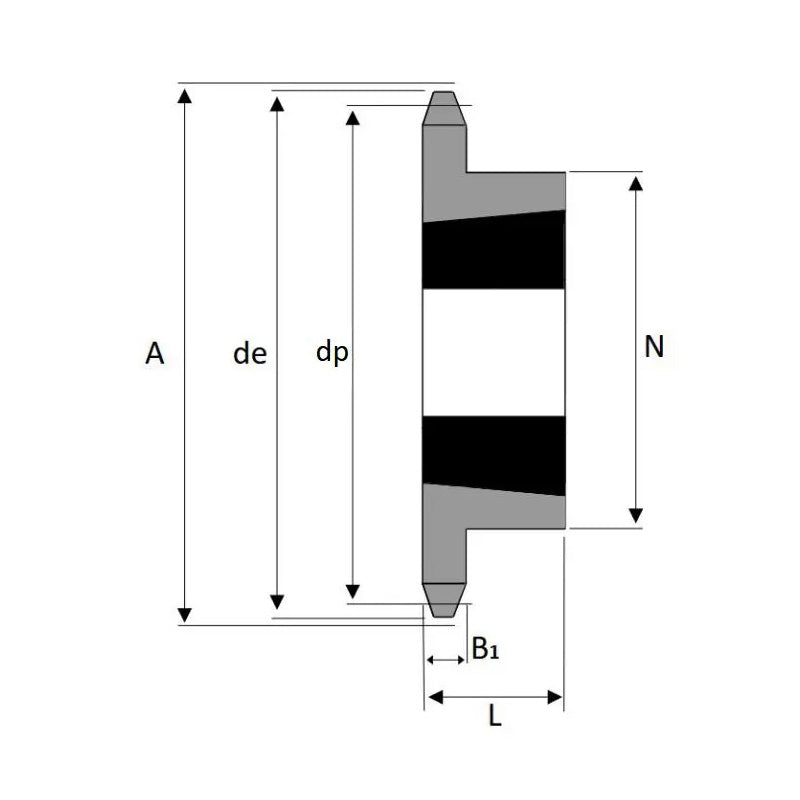

Technical
Technical
| Tooth Radius r3 | 16mm |
|---|---|
| Chamfer c | 1.6mm |
| Tooth Width b1 | 9mm |
| Tooth Width B1 | 9.1mm |
| Tooth Width B2 | 25.5mm |
| Tooth Width B3 | 42.1mm |
| Pitch | 15.875mm |
| Width Between Inner | 9.65mm |
| Roller Diameter | 10.16mm |
| No. of Teeth | 30 |
| Outer Diameter de | 158.8mm |
| Pitch Diameter dp | 151.87mm |
| Hub Diameter dm | 90mm |
| Length Through Bore A | 32mm |
| Reference | 51-30 |
| Taper Bush | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2012+tapered+locking+bush>2012 Click Here</a> |
