SKU: TBS-DS-12B-17

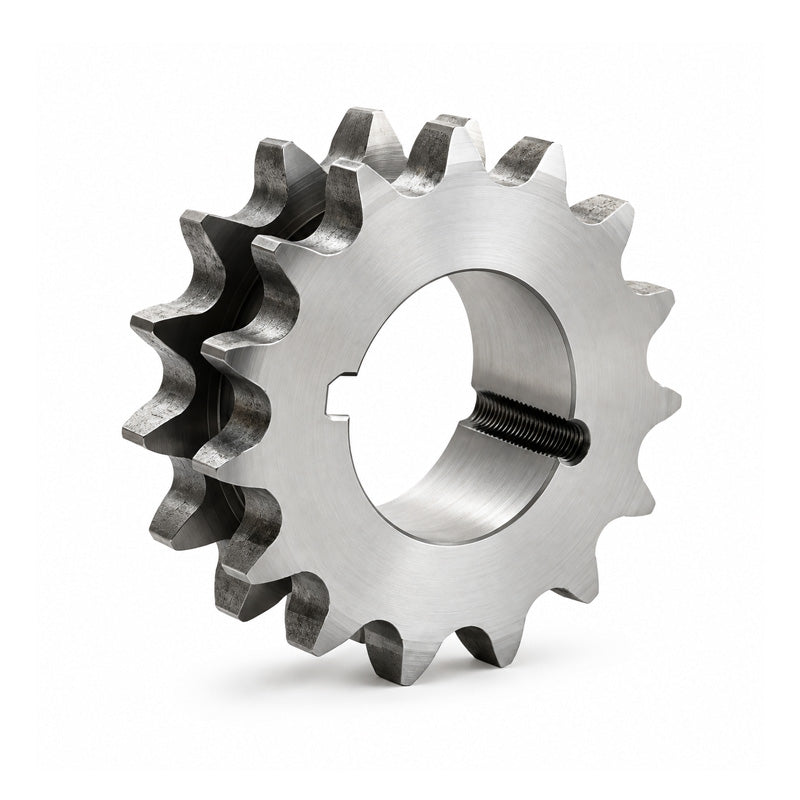

17 Tooth 12B Tapered Bore Double Simplex Sprocket 3/4 inch Pitch Chain
17 Tooth 12B Tapered Bore Double Simplex Sprocket 3/4 inch Pitch Chain
Regular price
Rs. 5,471.52
Regular price
Sale price
Rs. 5,471.52
Taxes included.
Equivalent to: 671-032 DS12B1-17TB
In stock
Price Break
10+
Rs. 4,869.65
19+
Rs. 4,596.08
29+
Rs. 4,541.36
39+
Rs. 4,486.65
49+
Rs. 4,431.93
74+
Rs. 4,377.22
99+
Rs. 4,103.64
199+
Rs. 4,048.92
249+
Rs. 3,994.21
499+
Rs. 3,939.49
999+
Rs. 3,830.06
Description
Description
Tapered Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel. These taper bore double simplex sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end-user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: 671-032 DS12B1-17TB
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: 671-032 DS12B1-17TB
- Brand / Quality:
- Major Brand - High Quality
- Number of Teeth:
- 17
- Pitch:
- 19.05mm = 0.75 (3/4) inch
- Item Type:
- BS European Standard
Technical
Technical
| No. of Teeth | 17 |
|---|---|
| Pitch Diameter dp | 103.67mm |
| Outer Diameter de | 111.5mm |
| Width B | 45mm |
| Hub Diameter N | 83mm |
| Chamfer C | 45mm |
| Tooth Radius r3 | 2mm |
| Tooth Width b1 | 19mm |
| Taper Bush Series | <a href="advanced_search_result.php?&keywords=1610+taperlock">1610<span style="color:blue"> Click Here</span></a> |
| Weight | 1.211 kg |
