SKU: TBS-DS-10B-19

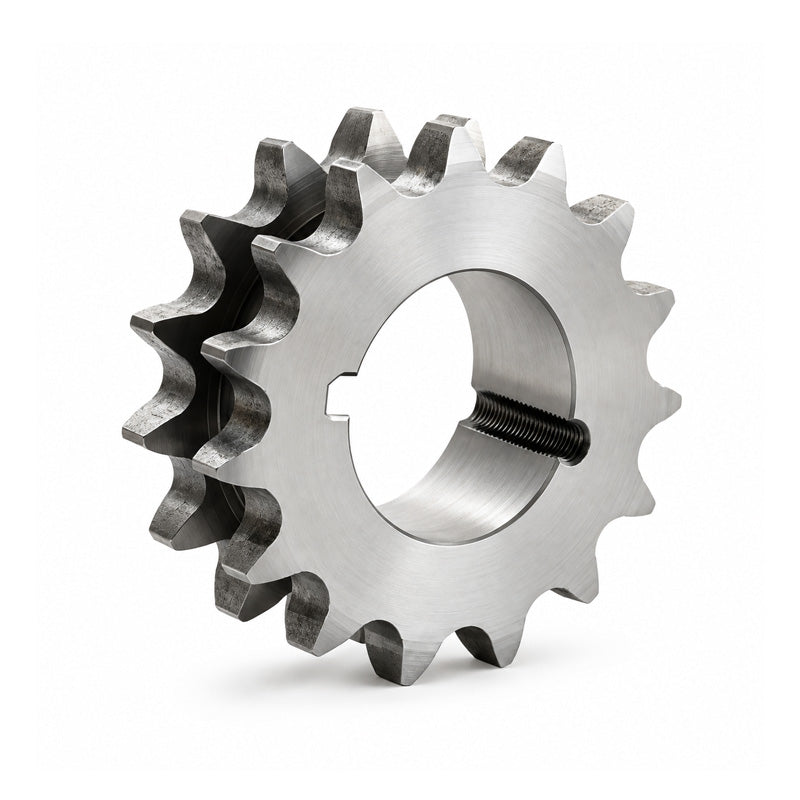

19 Tooth 10B Tapered Bore Double Simplex Sprocket 5/8 inch Pitch Chain
19 Tooth 10B Tapered Bore Double Simplex Sprocket 5/8 inch Pitch Chain
Regular price
Rs. 2,748.74
ex VAT
Regular price
Sale price
Rs. 2,748.74
ex VAT
Equivalent to: 671-023 DS10B1-19TB
In stock
Price Break
10+
Rs. 2,446.38
19+
Rs. 2,308.94
29+
Rs. 2,281.45
39+
Rs. 2,253.97
49+
Rs. 2,226.48
74+
Rs. 2,198.99
99+
Rs. 2,061.56
199+
Rs. 2,034.07
249+
Rs. 2,006.58
499+
Rs. 1,979.09
999+
Rs. 1,924.12
Couldn't load pickup availability
Description
Description
Tapered Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel. These taper bore double simplex sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end-user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: 671-023 DS10B1-19TB
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: 671-023 DS10B1-19TB
- Brand / Quality:
- Major Brand - High Quality
- Number of Teeth:
- 19
- Chain Pitch:
- 15.88mm = 0.625 (5/8) inch
- Item Type:
- BS European Standard
Technical
Technical
| No. of Teeth | 19 |
|---|---|
| Pitch Diameter dp | 96.45mm |
| Outer Diameter de | 103.3mm |
| Hub Diameter N | 80mm |
| Width B | 36.5mm |
| Chamfer C | 1.6mm |
| Tooth Radius r3 | 16mm |
| Tooth Width b1 | 9.2mm |
| Taper Bush Series | 1610 |
| Weight | 0.819 kg |
