SKU: TBS-DS-10B-12
12 Tooth 10B Tapered Bore Double Simplex Sprocket 5/8 inch Pitch Chain
12 Tooth 10B Tapered Bore Double Simplex Sprocket 5/8 inch Pitch Chain
Regular price
Rs. 1,382.60
Regular price
Sale price
Rs. 1,382.60
Taxes included.
Equivalent to: 671-016 DS10B1-12TB
In stock
Price Break
10+
Rs. 1,230.51
19+
Rs. 1,161.38
29+
Rs. 1,147.56
39+
Rs. 1,133.73
49+
Rs. 1,119.91
74+
Rs. 1,106.08
99+
Rs. 1,036.95
199+
Rs. 1,023.12
249+
Rs. 1,009.30
499+
Rs. 995.47
999+
Rs. 967.82
Description
Description
Tapered Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel. These taper bore double simplex sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end-user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: 671-016 DS10B1-12TB
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: 671-016 DS10B1-12TB
- Brand / Quality:
- Major Brand - High Quality
- Number of Teeth:
- 12
- Pitch:
- 15.88mm = 0.625 (5/8) inch
- Item Type:
- BS European Standard
Technical
Technical

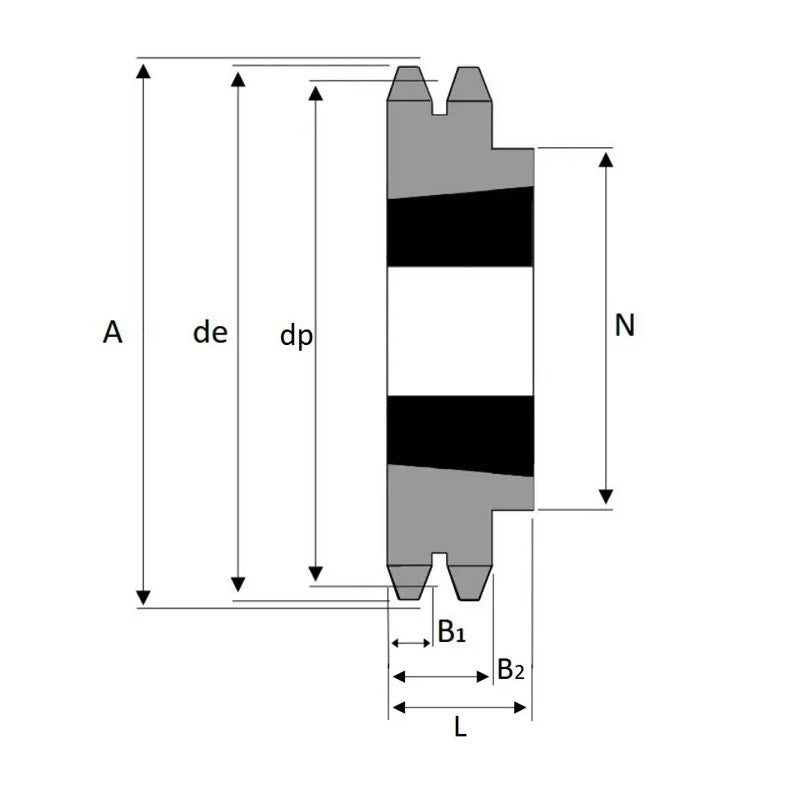

| No. of Teeth | 12 |
|---|---|
| Pitch Diameter dp | 61.34mm |
| Outer Diameter de | 68mm |
| Hub Diameter N | 45mm |
| Width B | 36.5mm |
| Chamfer C | 1.6mm |
| Tooth Radius r3 | 16mm |
| Tooth Width b1 | 9.2mm |
| Taper Bush Series | <a href="advanced_search_result.php?&keywords=1108+taperlock">1108<span style="color:blue"> Click Here</span></a> |
| Weight | 0.294 kg |
