SKU: TBS-DS-08B-20

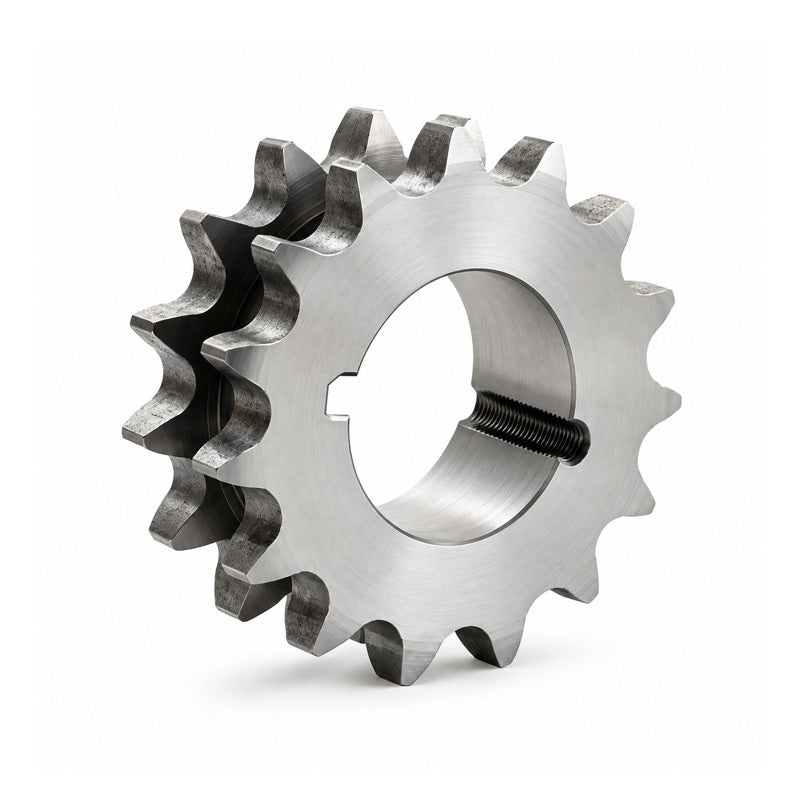

20 Tooth 08B Tapered Bore Double Simplex Sprocket for 1/2 inch Pitch Chain
20 Tooth 08B Tapered Bore Double Simplex Sprocket for 1/2 inch Pitch Chain
Regular price
Rs. 1,818.48
ex VAT
Regular price
Sale price
Rs. 1,818.48
ex VAT
Equivalent to: 671-012 DS08B1-20TB
In stock
Price Break
10+
Rs. 1,618.45
19+
Rs. 1,527.52
29+
Rs. 1,509.34
39+
Rs. 1,491.15
49+
Rs. 1,472.97
74+
Rs. 1,454.78
99+
Rs. 1,363.86
199+
Rs. 1,345.68
249+
Rs. 1,327.49
499+
Rs. 1,309.31
999+
Rs. 1,272.94
Couldn't load pickup availability
Description
Description
Tapered Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel. These taper bore double simplex sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end-user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: 671-012 DS08B1-20TB
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: 671-012 DS08B1-20TB
- Brand / Quality:
- Major Brand - High Quality
- Number of Teeth:
- 20
- Chain Pitch:
- 12.7mm = 0.5 (1/2) inch
- Item Type:
- BS European Standard
Technical
Technical
| No. of Teeth | 20 |
|---|---|
| Pitch Diameter dp | 81.19mm |
| Outer Diameter de | 85.8mm |
| Hub Diameter N | 66mm |
| Width B | 31mm |
| Chamfer C | 1.3mm |
| Tooth Radius r3 | 13mm |
| Tooth Width b1 | 7.2mm |
| Taper Bush Series | 1210 |
| Weight | 0.455 kg |
