SKU: TBS-DS-06B-25

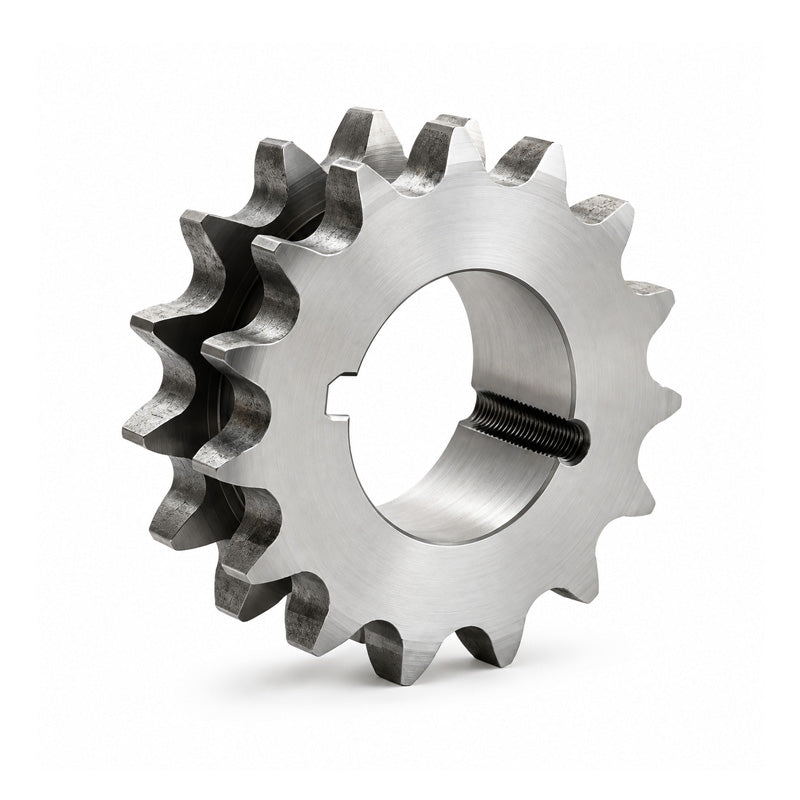

25 Tooth 06B Tapered Bore Double Simplex Sprocket for 3/8 inch Pitch Chain
25 Tooth 06B Tapered Bore Double Simplex Sprocket for 3/8 inch Pitch Chain
Regular price
Rs. 1,377.48
Regular price
Sale price
Rs. 1,377.48
Taxes included.
Equivalent to: 671-006 DS06B1-25TB
In stock
Price Break
10+
Rs. 1,225.96
19+
Rs. 1,157.08
29+
Rs. 1,143.31
39+
Rs. 1,129.53
49+
Rs. 1,115.76
74+
Rs. 1,101.98
99+
Rs. 1,033.11
199+
Rs. 1,019.34
249+
Rs. 1,005.56
499+
Rs. 991.79
999+
Rs. 964.24
Description
Description
Tapered Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel. These taper bore double simplex sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end-user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: 671-006 DS06B1-25TB
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: 671-006 DS06B1-25TB
- Brand / Quality:
- Major Brand - High Quality
- Number of Teeth:
- 25
- Pitch:
- 9.53mm = 0.375 (3/8) inch
- Item Type:
- BS European Standard
Technical
Technical
| No. of Teeth | 25 |
|---|---|
| Pitch Diameter dp | 76mm |
| Outer Diameter de | 80mm |
| Width B | 23.5mm |
| Hub Diameter N | 64mm |
| Chamfer C | 1mm |
| Tooth Radius r3 | 10mm |
| Tooth Width b1 | 5.3mm |
| Taper Bush Series | <a href="advanced_search_result.php?&keywords=1108+taperlock">1108<span style="color:blue"> Click Here</span></a> |
| Weight | 0.371 kg |
