SKU: TBS-DS-06B-19

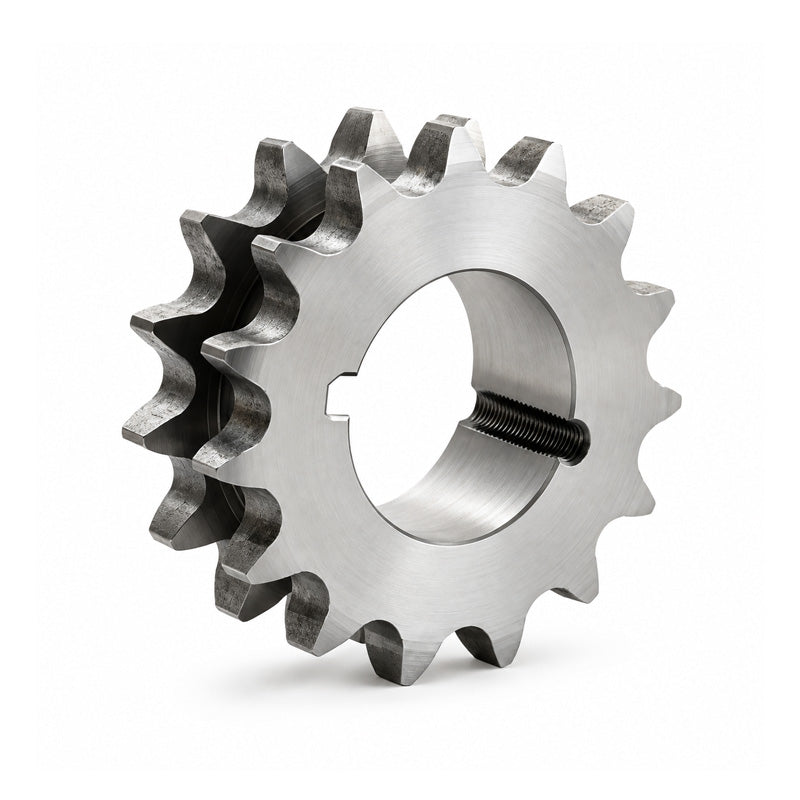

19 Tooth 06B Tapered Bore Double Simplex Sprocket for 3/8 inch Pitch Chain
19 Tooth 06B Tapered Bore Double Simplex Sprocket for 3/8 inch Pitch Chain
Regular price
Rs. 2,102.07
Regular price
Sale price
Rs. 2,102.07
Taxes included.
Equivalent to: 671-002 DS06B1-19TB
In stock
Price Break
10+
Rs. 1,870.84
19+
Rs. 1,765.74
29+
Rs. 1,744.72
39+
Rs. 1,723.70
49+
Rs. 1,702.68
74+
Rs. 1,681.66
99+
Rs. 1,576.55
199+
Rs. 1,555.53
249+
Rs. 1,534.51
499+
Rs. 1,513.49
999+
Rs. 1,471.45
Description
Description
Tapered Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel. These taper bore double simplex sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end-user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: 671-002 DS06B1-19TB
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: 671-002 DS06B1-19TB
- Brand / Quality:
- Major Brand - High Quality
- Number of Teeth:
- 19
- Pitch:
- 9.53mm = 0.375 (3/8) inch
- Item Type:
- BS European Standard
Technical
Technical
| No. of Teeth | 19 |
|---|---|
| Pitch Diameter dp | 57.87mm |
| Outer Diameter de | 61.3mm |
| Width B | 23.5mm |
| Hub Diameter N | 46mm |
| Chamfer C | 1mm |
| Tooth Radius r3 | 10mm |
| Tooth Width b1 | 5.3mm |
| Taper Bush Series | <a href="advanced_search_result.php?&keywords=1008+taperlock">1008<span style="color:blue"> Click Here</span></a> |
| Weight | 0.161 kg |
