SKU: TBS-DS-06B-18

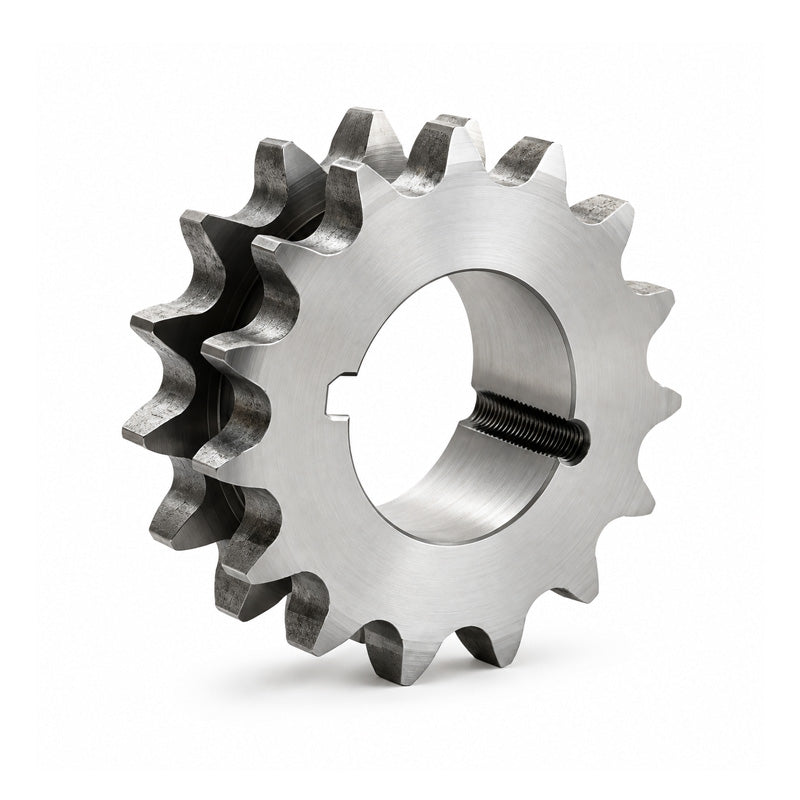

18 Tooth 06B Tapered Bore Double Simplex Sprocket for 3/8 inch Pitch Chain
18 Tooth 06B Tapered Bore Double Simplex Sprocket for 3/8 inch Pitch Chain
Regular price
Rs. 982.96
ex VAT
Regular price
Sale price
Rs. 982.96
ex VAT
Equivalent to: 671-001 DS06B1-18TB
In stock
Price Break
10+
Rs. 874.83
19+
Rs. 825.69
29+
Rs. 815.86
39+
Rs. 806.03
49+
Rs. 796.20
74+
Rs. 786.37
99+
Rs. 737.22
199+
Rs. 727.39
249+
Rs. 717.56
499+
Rs. 707.73
999+
Rs. 688.07
Couldn't load pickup availability
Description
Description
Tapered Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel. These taper bore double simplex sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end-user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: 671-001 DS06B1-18TB
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: 671-001 DS06B1-18TB
- Brand / Quality:
- Major Brand - High Quality
- Number of Teeth:
- 18
- Chain Pitch:
- 9.53mm = 0.375 (3/8) inch
- Item Type:
- BS European Standard
Technical
Technical

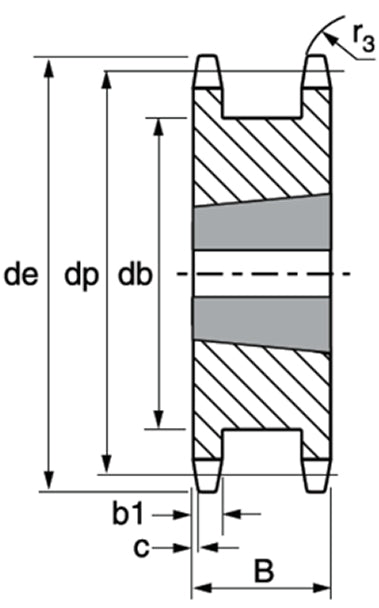

| No. of Teeth | 18 |
|---|---|
| Pitch Diameter dp | 54.85mm |
| Outer Diameter de | 58.3mm |
| Width B | 23.5mm |
| Hub Diameter N | 43mm |
| Chamfer C | 1mm |
| Tooth Radius r3 | 10mm |
| Tooth Width b1 | 5.3mm |
| Taper Bush Series | 1008 |
| Weight | 0.133 kg |
