SKU: TBS-D-16B-18

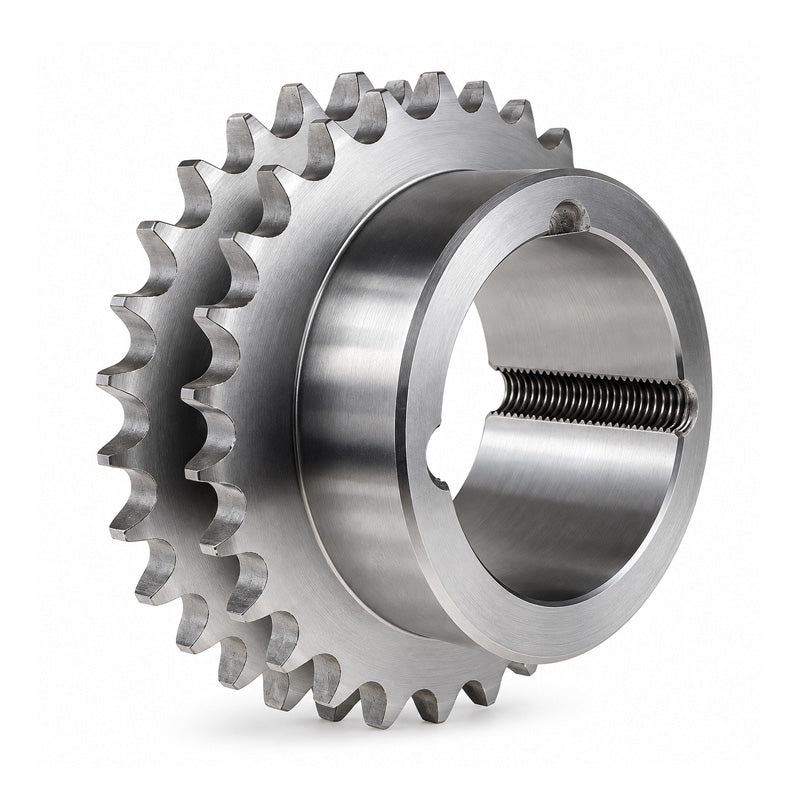

18 Tooth 16B Duplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain (Bush not Incl.)
18 Tooth 16B Duplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain (Bush not Incl.)
Regular price
Rs. 8,984.36
Regular price
Sale price
Rs. 8,984.36
Taxes included.
Equivalent to: 16B2 TS82-18 82-18
In stock
Price Break
10+
Rs. 7,996.08
19+
Rs. 7,546.86
29+
Rs. 7,457.02
39+
Rs. 7,367.18
49+
Rs. 7,277.33
74+
Rs. 7,187.49
99+
Rs. 6,738.27
199+
Rs. 6,648.43
249+
Rs. 6,558.58
499+
Rs. 6,468.74
999+
Rs. 6,289.05
Description
Description
Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: 16B2 TS82-18 82-18
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: 16B2 TS82-18 82-18
- Brand / Quality:
- Major Brand - High Quality
- Number of Teeth:
- 18
- Pitch:
- 25.4mm = 1 inch
- Item Type:
- BS European Standard
Technical
Technical
| Tooth Radius r3 | 26mm |
|---|---|
| Chamfer c | 2.5mm |
| Tooth Width b1 | 15.8mm |
| Tooth Width B1 | 16.2mm |
| Tooth Width B2 | 47.7mm |
| Tooth Width B3 | 79.6mm |
| Pitch | 25.4mm |
| Width Between Inner | 17.02mm |
| Roller Diameter | 15.88mm |
| No. of Teeth | 18 |
| Outer Diameter de | 157mm |
| Pitch Diameter dp | 146.28mm |
| Length Through Bore A | 47.7mm |
| Reference | 82-18 |
| Taper Bush | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2517+tapered+locking+bush>2517 Click Here</a> |
