SKU: TBS-D-16B-15

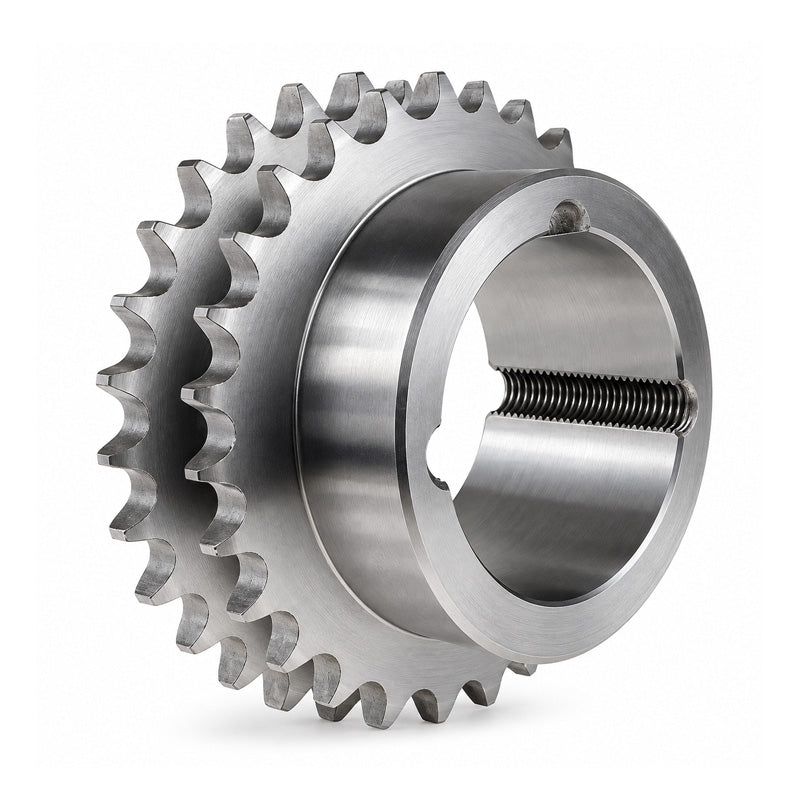

15 Tooth 16B Duplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain (Bush not Incl.)
15 Tooth 16B Duplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain (Bush not Incl.)
Regular price
Rs. 3,501.31
Regular price
Sale price
Rs. 3,501.31
Taxes included.
Equivalent to: 16B2 TS82-15 82-15
In stock
Price Break
10+
Rs. 3,116.17
19+
Rs. 2,941.10
29+
Rs. 2,906.09
39+
Rs. 2,871.07
49+
Rs. 2,836.06
74+
Rs. 2,801.05
99+
Rs. 2,625.98
199+
Rs. 2,590.97
249+
Rs. 2,555.96
499+
Rs. 2,520.94
999+
Rs. 2,450.92
Description
Description
Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: 16B2 TS82-15 82-15
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: 16B2 TS82-15 82-15
- Brand / Quality:
- Major Brand - High Quality
- Number of Teeth:
- 15
- Pitch:
- 25.4mm = 1 inch
- Item Type:
- BS European Standard
Technical
Technical
| Tooth Radius r3 | 26mm |
|---|---|
| Chamfer c | 2.5mm |
| Tooth Width b1 | 15.8mm |
| Tooth Width B1 | 16.2mm |
| Tooth Width B2 | 47.7mm |
| Tooth Width B3 | 79.6mm |
| Pitch | 25.4mm |
| Width Between Inner | 17.02mm |
| Roller Diameter | 15.88mm |
| No. of Teeth | 15 |
| Outer Diameter de | 133mm |
| Pitch Diameter dp | 122.17mm |
| Length Through Bore A | 47.7mm |
| Reference | 82-15 |
| Taper Bush | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2012+tapered+locking+bush>2012 Click Here</a> |
