SKU: TBS-D-12B-45

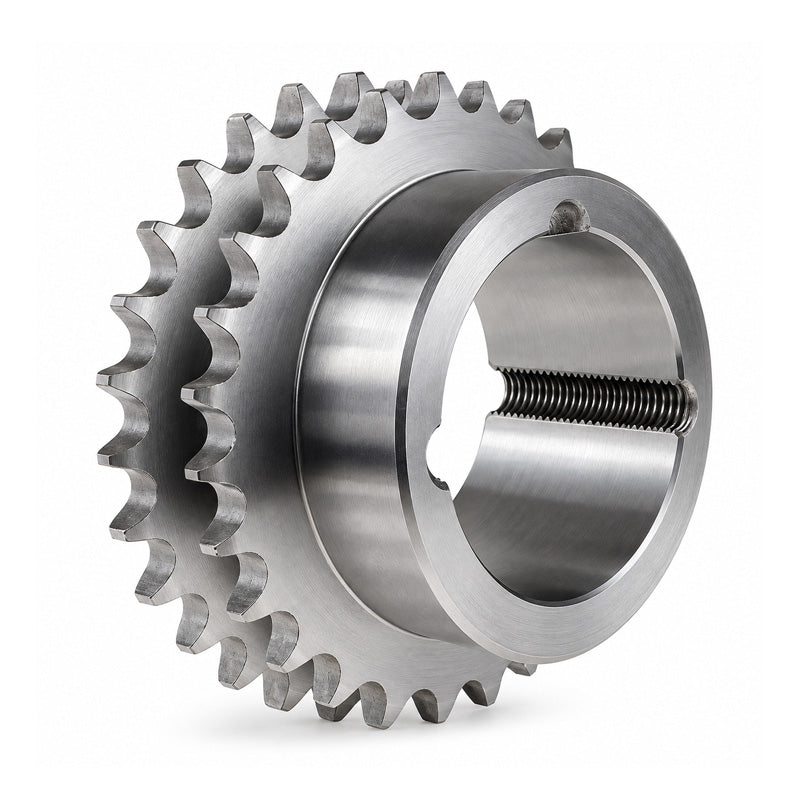

45 Tooth 12B Duplex Sprocket Tapered Locking Bush Type for 3/4 inch Pitch Chain (Bush not Incl.)
45 Tooth 12B Duplex Sprocket Tapered Locking Bush Type for 3/4 inch Pitch Chain (Bush not Incl.)
Regular price
Rs. 16,988.09
Regular price
Sale price
Rs. 16,988.09
Taxes included.
Equivalent to: TS62-45 12B2 TS62-45 62-45
In stock
Price Break
10+
Rs. 15,119.40
19+
Rs. 14,270.00
29+
Rs. 14,100.11
39+
Rs. 13,930.23
49+
Rs. 13,760.35
74+
Rs. 13,590.47
99+
Rs. 12,741.07
199+
Rs. 12,571.19
249+
Rs. 12,401.31
499+
Rs. 12,231.42
999+
Rs. 11,891.66
Description
Description
Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: TS62-45 12B2 TS62-45 62-45
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: TS62-45 12B2 TS62-45 62-45
- Brand / Quality:
- Major Brand - High Quality
- Number of Teeth:
- 45
- Pitch:
- 19.05mm = 0.75 (3/4) inch
- Item Type:
- BS European Standard
Technical
Technical

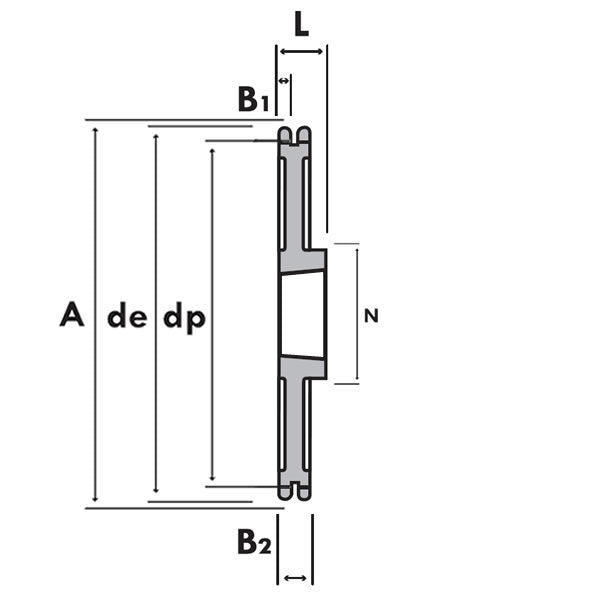

| No. of Teeth | 45 |
|---|---|
| Pitch Diameter dp | 273.1mm |
| Outer Diameter de | 283mm |
| Diameter Over Chain A | 291mm |
| Hub Diameter N | 140mm |
| Tooth Width B2 | 30.3mm |
| Bore Length L | 50.8mm |
| Taper Bush Series | <a href="advanced_search_result.php?&keywords=3020+taperlock">3020<span style="color:blue"> Click Here</span></a> |
| Weight | 11.445 kg |
