SKU: TBS-D-10B-38

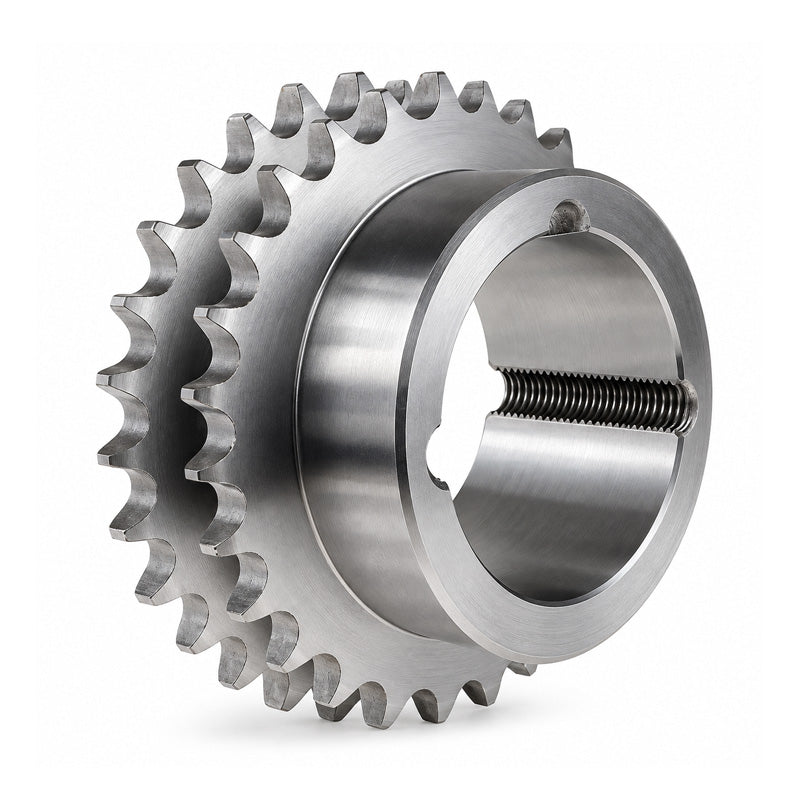

38 Tooth 10B Duplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
38 Tooth 10B Duplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
Regular price
Rs. 8,637.43
Regular price
Sale price
Rs. 8,637.43
Taxes included.
Equivalent to: TS52-38 10B2 TS51-38 51-38
In stock
Price Break
10+
Rs. 7,687.31
19+
Rs. 7,255.44
29+
Rs. 7,169.07
39+
Rs. 7,082.69
49+
Rs. 6,996.32
74+
Rs. 6,909.94
99+
Rs. 6,478.07
199+
Rs. 6,391.70
249+
Rs. 6,305.32
499+
Rs. 6,218.95
999+
Rs. 6,046.20
Description
Description
Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: TS52-38 10B2 TS51-38 51-38
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: TS52-38 10B2 TS51-38 51-38
- Brand / Quality:
- Major Brand - High Quality
- Number of Teeth:
- 38
- Pitch:
- 15.88mm = 0.625 (5/8) inch
- Item Type:
- BS European Standard
Technical
Technical
| Tooth Radius r3 | 16mm |
|---|---|
| Chamfer c | 1.6mm |
| Tooth Width b1 | 9mm |
| Tooth Width B1 | 9.1mm |
| Tooth Width B2 | 25.5mm |
| Tooth Width B3 | 42.1mm |
| Pitch | 15.875mm |
| Width Between Inner | 9.65mm |
| Roller Diameter | 10.16mm |
| No. of Teeth | 38 |
| Outer Diameter de | 199.2mm |
| Pitch Diameter dp | 192.24mm |
| Hub Diameter dm | 110mm |
| Length Through Bore A | 45mm |
| Reference | 52-38 |
| Taper Bush | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2517+tapered+locking+bush>2517 Click Here</a> |
