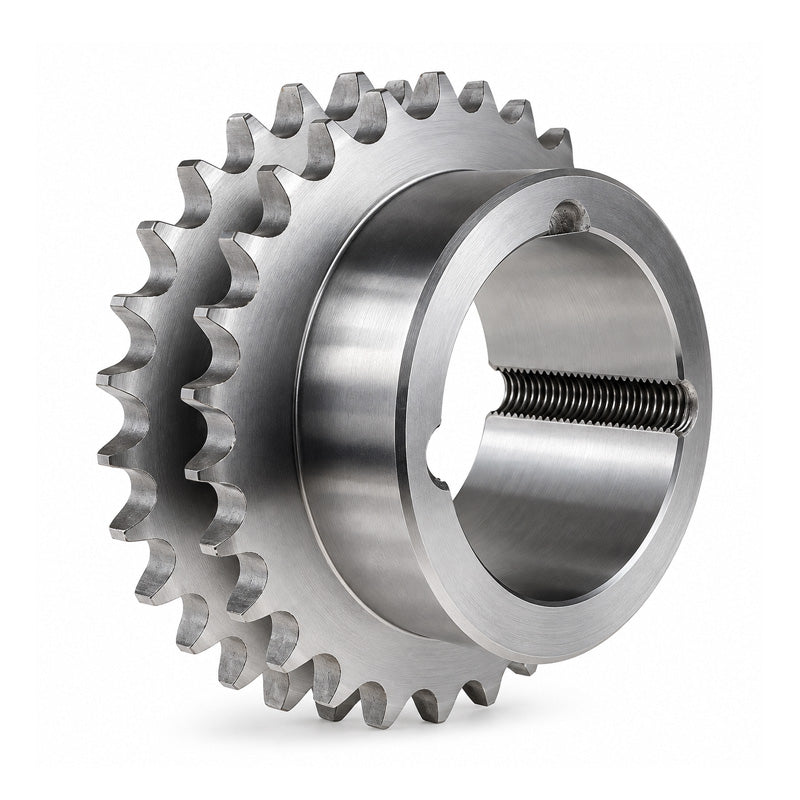

• 25 Tooth 10B Duplex Reverse Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
1 1

SKU: TBS-D-10B-25-R-2017

25 Tooth 10B Duplex Reverse Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)

25 Tooth 10B Duplex Reverse Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
Rs. 8,813.62 ex VAT
Rs. 8,813.62 ex VAT
Sale Sold out

In stock

Price Break
10+ Rs. 7,844.12
19+ Rs. 7,403.44
29+ Rs. 7,315.30
39+ Rs. 7,227.17
49+ Rs. 7,139.03
74+ Rs. 7,050.90
99+ Rs. 6,610.22
199+ Rs. 6,522.08
249+ Rs. 6,433.94
499+ Rs. 6,345.81
999+ Rs. 6,169.53
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Note: Bush Type Modified To Fit 2017 Series Bush
Brand / Quality:
Powerdrive - Good Quality
Number of Teeth:
25
Chain Pitch:
15.88mm = 0.625 (5/8) inch

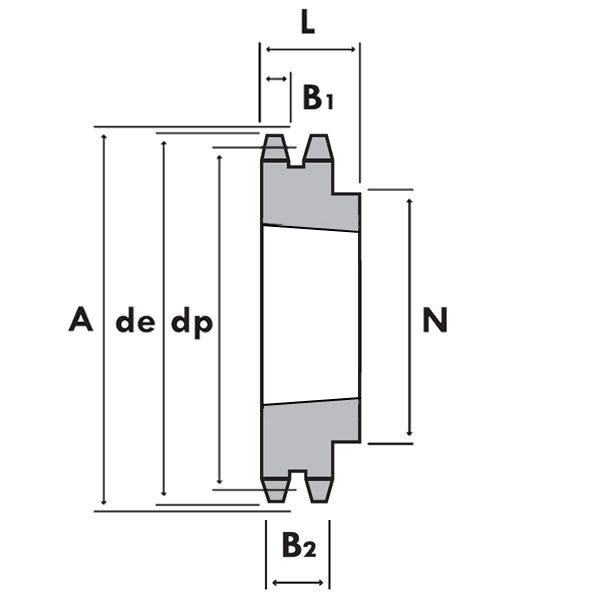

Technical
Tooth Radius r3 16mm
Chamfer c 1.6mm
Tooth Width b1 9mm
Tooth Width B1 9.1mm
Tooth Width B2 25.5mm
Tooth Width B3 42.1mm
Pitch 15.875mm
Width Between Inner 9.65mm
Roller Diameter 10.16mm
No. of Teeth 25
Outer Diameter de 134mm
Pitch Diameter dp 126.66mm
Hub Diameter dm 90mm
Length Through Bore A 32mm
Reference 52-25
Taper Bush 2017
