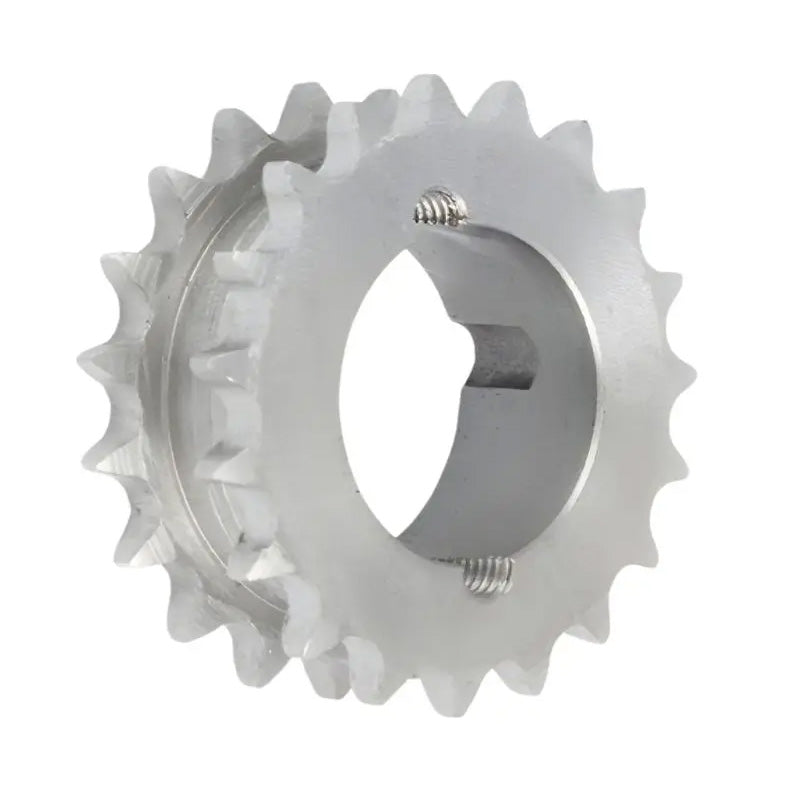

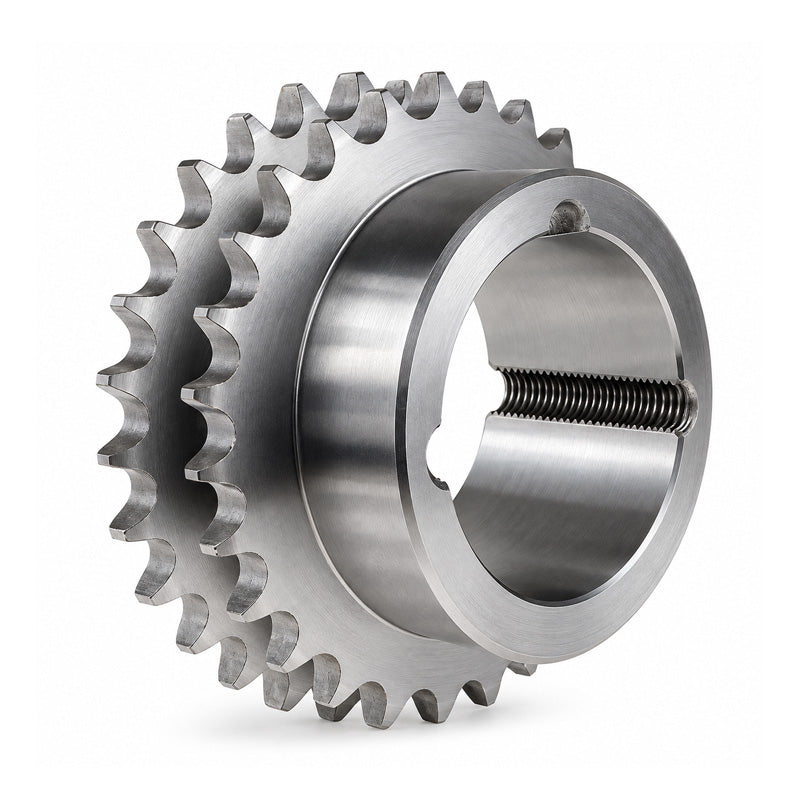

20 Tooth 10B Duplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
20 Tooth 10B Duplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
Regular price
Rs. 1,764.77
ex VAT
Regular price
Sale price
Rs. 1,764.77
ex VAT
Equivalent to: TS52-20 10B2 TS51-20 51-20
In stock
Price Break
10+
Rs. 1,570.65
19+
Rs. 1,482.41
29+
Rs. 1,464.76
39+
Rs. 1,447.11
49+
Rs. 1,429.46
74+
Rs. 1,411.82
99+
Rs. 1,323.58
199+
Rs. 1,305.93
249+
Rs. 1,288.28
499+
Rs. 1,270.63
999+
Rs. 1,235.34
Couldn't load pickup availability
Description
Description
Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: TS52-20 10B2 TS51-20 51-20
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: TS52-20 10B2 TS51-20 51-20
- Brand / Quality:
- Major Brand - High Quality
- Number of Teeth:
- 20
- Chain Pitch:
- 15.88mm = 0.625 (5/8) inch
- Item Type:
- BS European Standard

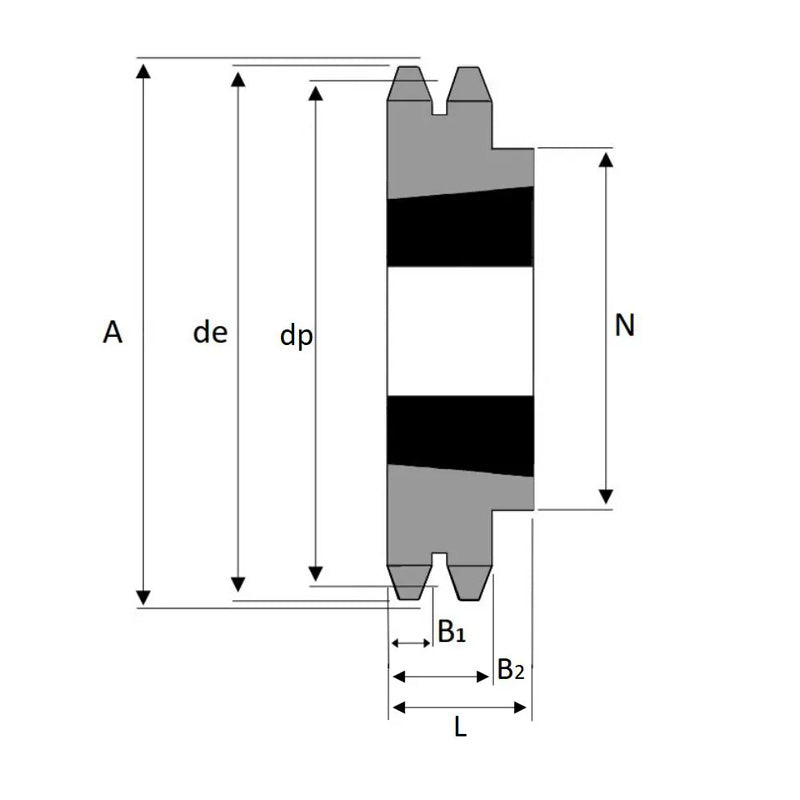

Technical
Technical
| Tooth Radius r3 | 16mm |
|---|---|
| Chamfer c | 1.6mm |
| Tooth Width b1 | 9mm |
| Tooth Width B1 | 9.1mm |
| Tooth Width B2 | 25.5mm |
| Tooth Width B3 | 42.1mm |
| Pitch | 15.875mm |
| Width Between Inner | 9.65mm |
| Roller Diameter | 10.16mm |
| No. of Teeth | 20 |
| Outer Diameter de | 108.4mm |
| Pitch Diameter dp | 101.49mm |
| Length Through Bore A | 25.5mm |
| Reference | 52-20 |
| Taper Bush | 1610 |
