SKU: TBS-D-06B-38

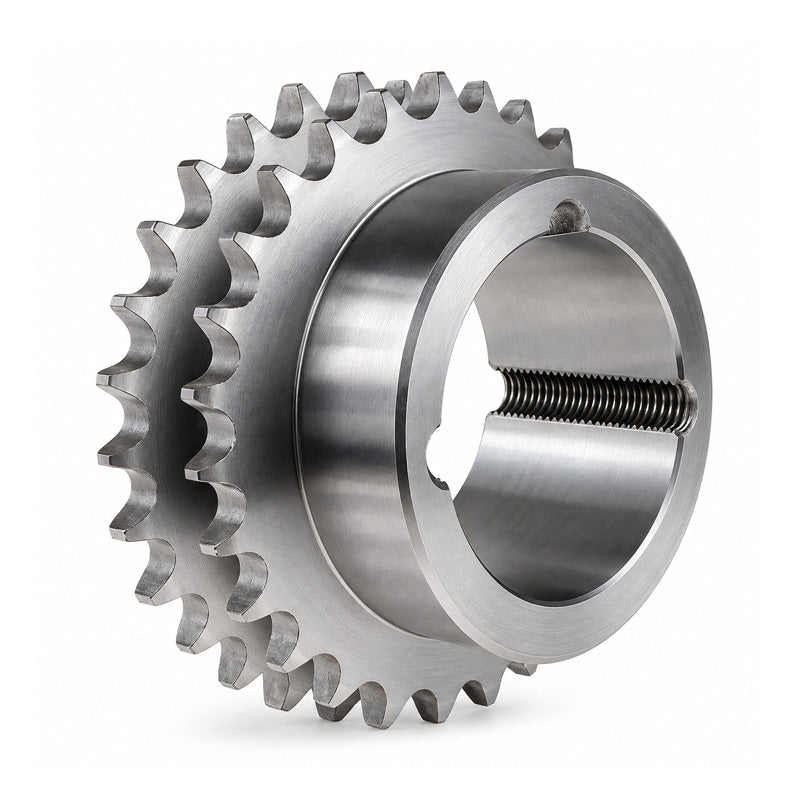

38 Tooth 06B Duplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.
38 Tooth 06B Duplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.
Regular price
Rs. 2,257.11
ex VAT
Regular price
Sale price
Rs. 2,257.11
ex VAT
Equivalent to: TS32-38 06B2 TS31-38 32-38
In stock
Price Break
10+
Rs. 2,008.83
19+
Rs. 1,895.97
29+
Rs. 1,873.40
39+
Rs. 1,850.83
49+
Rs. 1,828.26
74+
Rs. 1,805.69
99+
Rs. 1,692.83
199+
Rs. 1,670.26
249+
Rs. 1,647.69
499+
Rs. 1,625.12
999+
Rs. 1,579.98
Couldn't load pickup availability
Description
Description
Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: TS32-38 06B2 TS31-38 32-38
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: TS32-38 06B2 TS31-38 32-38
- Brand / Quality:
- Major Brand - High Quality
- Number of Teeth:
- 38
- Chain Pitch:
- 9.53mm = 0.375 (3/8) inch
- Item Type:
- BS European Standard
Technical
Technical
| Tooth Radius r3 | 10mm |
|---|---|
| Chamfer c | 1mm |
| Tooth Width b1 | 5.2mm |
| Tooth Width B1 | 5.3mm |
| Tooth Width B2 | 15.4mm |
| Tooth Width B3 | 25.6mm |
| Pitch | 9.525mm |
| Width Between Inner | 5.72mm |
| Roller Diameter | 6.35mm |
| No. of Teeth | 38 |
| Outer Diameter de | 119.5mm |
| Pitch Diameter dp | 115.35mm |
| Hub Diameter dm | 80mm |
| Length Through Bore A | 25mm |
| Reference | 32-38 |
| Taper Bush | 1610 |
