SKU: TBS-D-06B-21

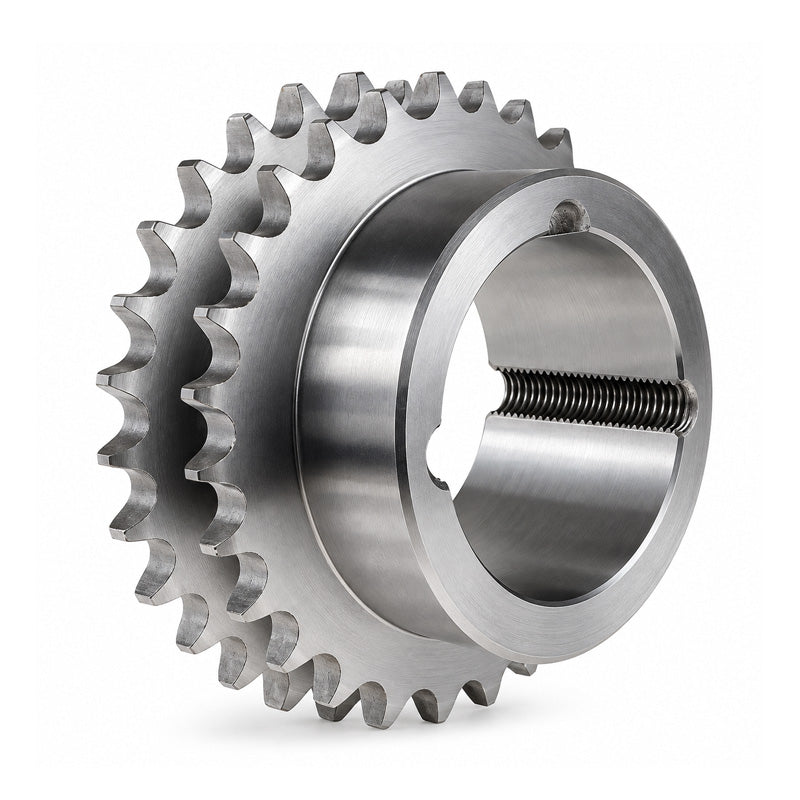

21 Tooth 06B Duplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.
21 Tooth 06B Duplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.
Regular price
Rs. 1,131.69
Regular price
Sale price
Rs. 1,131.69
Taxes included.
Equivalent to: TS32-21 06B2 TS31-21 32-21
In stock
Price Break
10+
Rs. 1,007.20
19+
Rs. 950.62
29+
Rs. 939.30
39+
Rs. 927.99
49+
Rs. 916.67
74+
Rs. 905.35
99+
Rs. 848.77
199+
Rs. 837.45
249+
Rs. 826.13
499+
Rs. 814.82
999+
Rs. 792.18
Description
Description
Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: TS32-21 06B2 TS31-21 32-21
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Equivalent: TS32-21 06B2 TS31-21 32-21
- Brand / Quality:
- Major Brand - High Quality
- Number of Teeth:
- 21
- Pitch:
- 9.53mm = 0.375 (3/8) inch
- Item Type:
- BS European Standard
Technical
Technical
| Tooth Radius r3 | 10mm |
|---|---|
| Chamfer c | 1mm |
| Tooth Width b1 | 5.2mm |
| Tooth Width B1 | 5.3mm |
| Tooth Width B2 | 15.4mm |
| Tooth Width B3 | 25.6mm |
| Pitch | 9.525mm |
| Width Between Inner | 5.72mm |
| Roller Diameter | 6.35mm |
| No. of Teeth | 21 |
| Outer Diameter de | 68mm |
| Pitch Diameter dp | 63.91mm |
| Hub Diameter dm | 49mm |
| Length Through Bore A | 22mm |
| Reference | 32-21 |
| Taper Bush | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1008+tapered+locking+bush>1008 Click Here</a> |
