SKU: TA.3520.Z

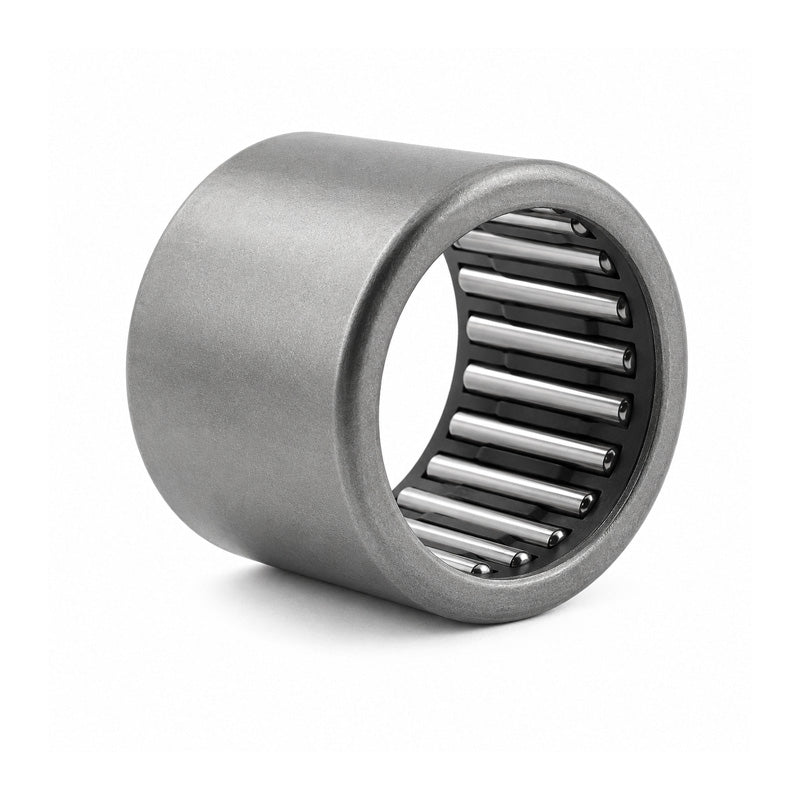

IKO TA3520Z Needle Roller Bearing Open End Type 35x45x20mm
IKO TA3520Z Needle Roller Bearing Open End Type 35x45x20mm
Regular price
Rs. 3,290.08
Regular price
Sale price
Rs. 3,290.08
Taxes included.
Equivalent to: HMK3520
In stock
Price Break
10+
Rs. 2,928.17
19+
Rs. 2,763.67
29+
Rs. 2,730.77
39+
Rs. 2,697.87
49+
Rs. 2,664.96
74+
Rs. 2,632.06
99+
Rs. 2,467.56
199+
Rs. 2,434.66
249+
Rs. 2,401.76
499+
Rs. 2,368.86
999+
Rs. 2,303.06
Description
Description
IKO TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK3520
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 45mm
- Width:
- 20mm
Technical
Technical
| Fw | 35mm |
|---|---|
| D | 45mm |
| C | 20mm |
| Dynamic load | 27000 N |
| Static load | 43100 N |
| Inner race | IRT3020 |
| Weight | 62.5 g |
