SKU: TA.1720.Z

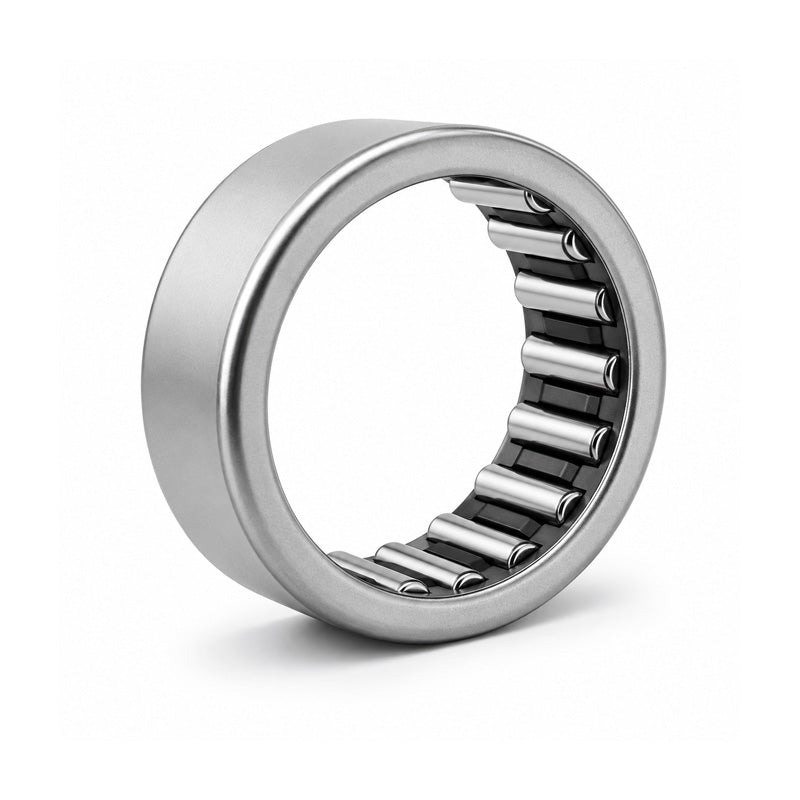

Major Brand TA1720Z Needle Roller Bearing Open End Type 17x24x20mm
Major Brand TA1720Z Needle Roller Bearing Open End Type 17x24x20mm
Regular price
Rs. 942.22
Regular price
Sale price
Rs. 942.22
Taxes included.
Equivalent to: HMK1720C
In stock
Price Break
10+
Rs. 838.58
19+
Rs. 791.46
29+
Rs. 782.04
39+
Rs. 772.62
49+
Rs. 763.20
74+
Rs. 753.78
99+
Rs. 706.67
199+
Rs. 697.24
249+
Rs. 687.82
499+
Rs. 678.40
999+
Rs. 659.55
Description
Description
Major Brand TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests, these are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterised by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required.
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Equivalent: HMK1720C
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 24mm
- Width:
- 20mm
Technical
Technical
| Fw | 17mm |
|---|---|
| D | 24mm |
| C | 20mm |
| Dynamic load | 13900 N |
| Static load | 20400 N |
| Inner race | IRT1220-2 |
| Weight | 23.5 g |
