SKU: SYF45TF-SKF

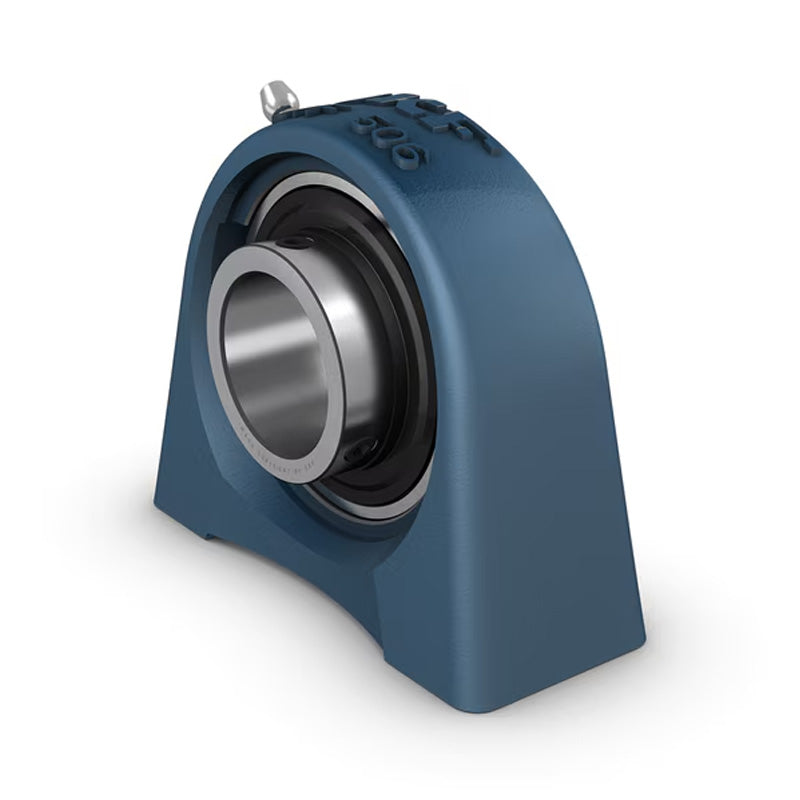

SKF SYF45TF Small Footprint Cast Iron Plummer Block with Grub Screw Insert 45mm
SKF SYF45TF Small Footprint Cast Iron Plummer Block with Grub Screw Insert 45mm
Regular price
Rs. 12,398.62
Regular price
Sale price
Rs. 12,398.62
Taxes included.
In stock
Price Break
10+
Rs. 11,034.77
19+
Rs. 10,414.84
29+
Rs. 10,290.85
39+
Rs. 10,166.87
49+
Rs. 10,042.88
74+
Rs. 9,918.90
99+
Rs. 9,298.97
199+
Rs. 9,174.98
249+
Rs. 9,050.99
499+
Rs. 8,927.01
999+
Rs. 8,679.03
Description
Description
|
SKF Y-bearing Plummer Block Units with a Cast Housing: These units contain a grey cast iron housing with a grease fitting in the housing which allows it to be re-lubricated. This makes them suitable for bearing arrangements that operate in high levels of contamination, high speeds, high temperatures or relatively heavy loads. The housing design has a shortened base that contains two threaded holes in the support base. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Style:
- SYF
- Bolt Hole Centres:
- 95.3mm

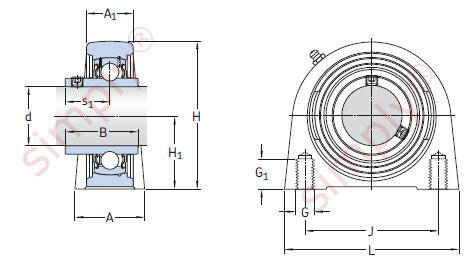

Technical
Technical
| d | 45mm |
|---|---|
| A | 48mm |
| A1 | 32mm |
| B | 49.2mm |
| H | 107.5mm |
| H1 | 54mm |
| J | 95.3mm |
| L | 120mm |
| G | M12 |
| G1 | 22mm |
| s1 | 30.2mm |
| Static load Cr | 21.6 kN |
| Dynamic load Cor | 33.2 kN |
| Fatigue load limit Pu | 0.915 kN |
| Limiting speed | 4300 rpm |
| Weight | 1.8 kg |
| Housing | SYF509 |
| Insert | YAR209-2F |
