SKU: SY50TF/VA201-SKF

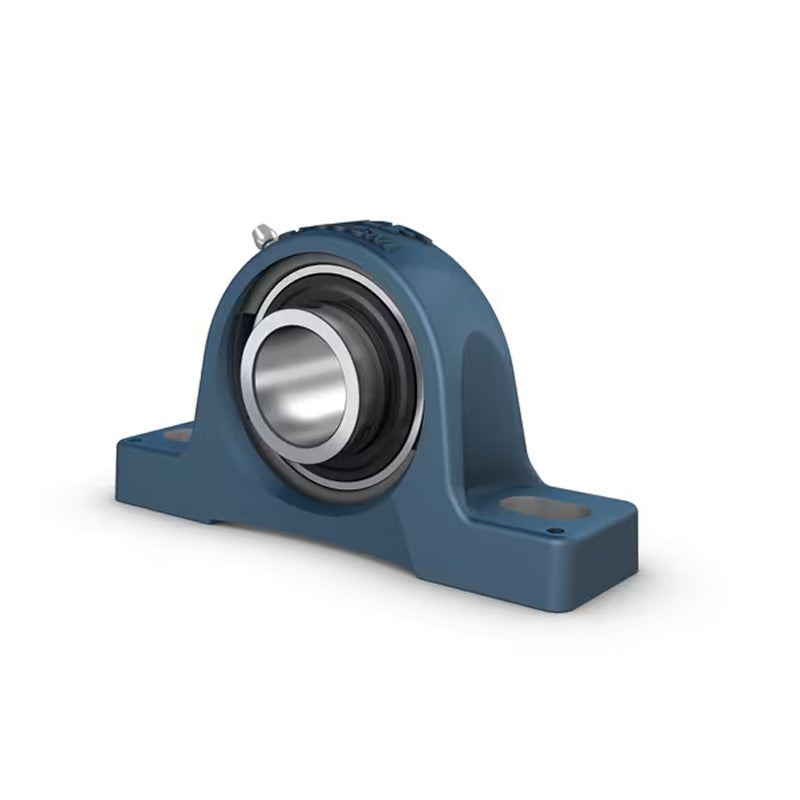

SKF SY50TFVA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Metric Shaft 50mm
SKF SY50TFVA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Metric Shaft 50mm
Regular price
Rs. 37,805.43
ex VAT
Regular price
Sale price
Rs. 37,805.43
ex VAT
In stock
Price Break
10+
Rs. 33,646.83
19+
Rs. 31,756.56
29+
Rs. 31,378.51
39+
Rs. 31,000.45
49+
Rs. 30,622.40
74+
Rs. 30,244.34
99+
Rs. 28,354.07
199+
Rs. 27,976.02
249+
Rs. 27,597.96
499+
Rs. 27,219.91
999+
Rs. 26,463.80
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Temperature Range:
- High Temp
Technical
Technical
| d | 50mm |
|---|---|
| A | 54mm |
| B | 51.6mm |
| H | 114mm |
| H1 | 57.2mm |
| H2 | 22mm |
| J | 157mm |
| L | 203mm |
| N | 26mm |
| N1 | 18mm |
| G | 16mm |
| S1 | 32.6mm |
| Dynamic load C | 35.1 kN |
| Static load Co | 23.2 kN |
| Weight | 2.69 kg |
