SKU: SY3/4TF/VA228-SKF

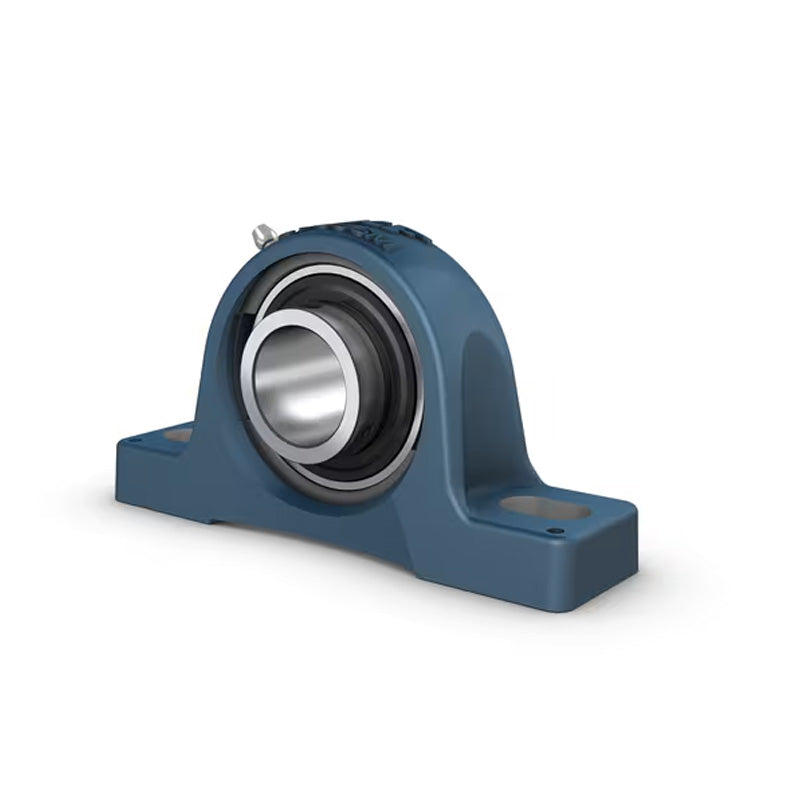

SKF SY3/4TF/VA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Imperial Shaft 3/4 inch
SKF SY3/4TF/VA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Imperial Shaft 3/4 inch
Regular price
Rs. 21,224.63
ex VAT
Regular price
Sale price
Rs. 21,224.63
ex VAT
In stock
Price Break
10+
Rs. 18,889.92
19+
Rs. 17,828.69
29+
Rs. 17,616.44
39+
Rs. 17,404.20
49+
Rs. 17,191.95
74+
Rs. 16,979.70
99+
Rs. 15,918.47
199+
Rs. 15,706.23
249+
Rs. 15,493.98
499+
Rs. 15,281.73
999+
Rs. 14,857.24
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 3/4 inch |
|---|---|
| A | 32mm |
| B | 31mm |
| H | 64mm |
| H1 | 33.3mm |
| H2 | 14mm |
| J | 97mm |
| L | 127mm |
| N | 20.5mm |
| N1 | 11.5mm |
| G | 10mm |
| S1 | 18.3mm |
| Dynamic load C | 12.7 kN |
| Static load Co | 6.55 kN |
| Weight | 0.6 kg |
