SKU: SY2.TF/VA201-SKF

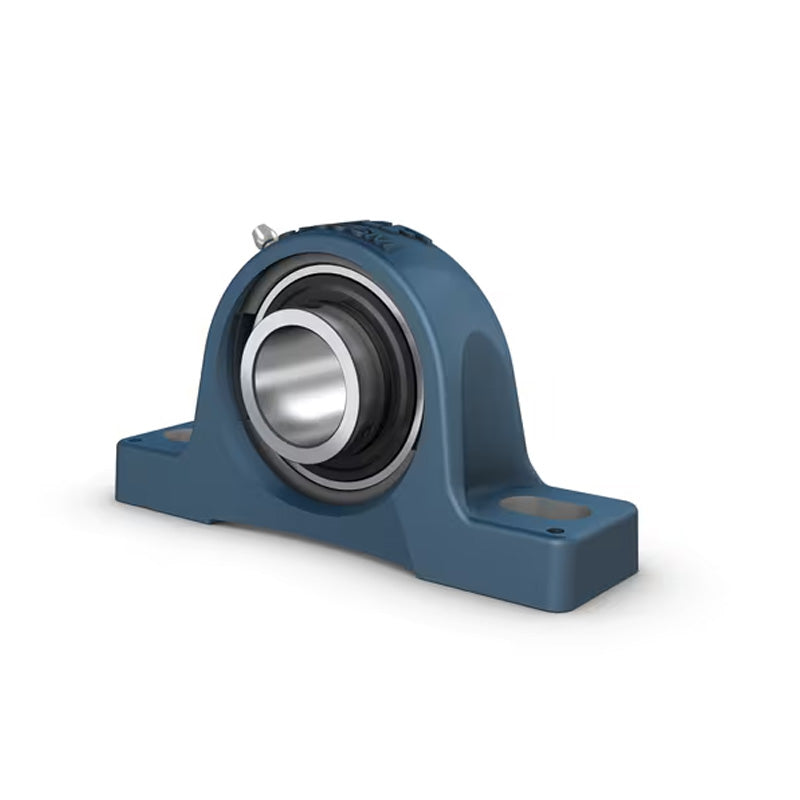

SKF SY2TF/VA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Imperial Shaft 2 inch
SKF SY2TF/VA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Imperial Shaft 2 inch
Regular price
Rs. 38,299.32
ex VAT
Regular price
Sale price
Rs. 38,299.32
ex VAT
In stock
Price Break
10+
Rs. 34,086.39
19+
Rs. 32,171.43
29+
Rs. 31,788.44
39+
Rs. 31,405.44
49+
Rs. 31,022.45
74+
Rs. 30,639.46
99+
Rs. 28,724.49
199+
Rs. 28,341.50
249+
Rs. 27,958.50
499+
Rs. 27,575.51
999+
Rs. 26,809.52
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 2 inch |
|---|---|
| A | 60mm |
| B | 55.6mm |
| H | 127mm |
| H1 | 63.5mm |
| H2 | 23.8mm |
| J | 171.5mm |
| L | 219mm |
| N | 27.5mm |
| N1 | 18mm |
| G | 16mm |
| S1 | 33.4mm |
| Dynamic load C | 43.6 kN |
| Static load Co | 29 kN |
| Weight | 3.75 kg |
