SKU: SY2.7/16TF/VA228-SKF

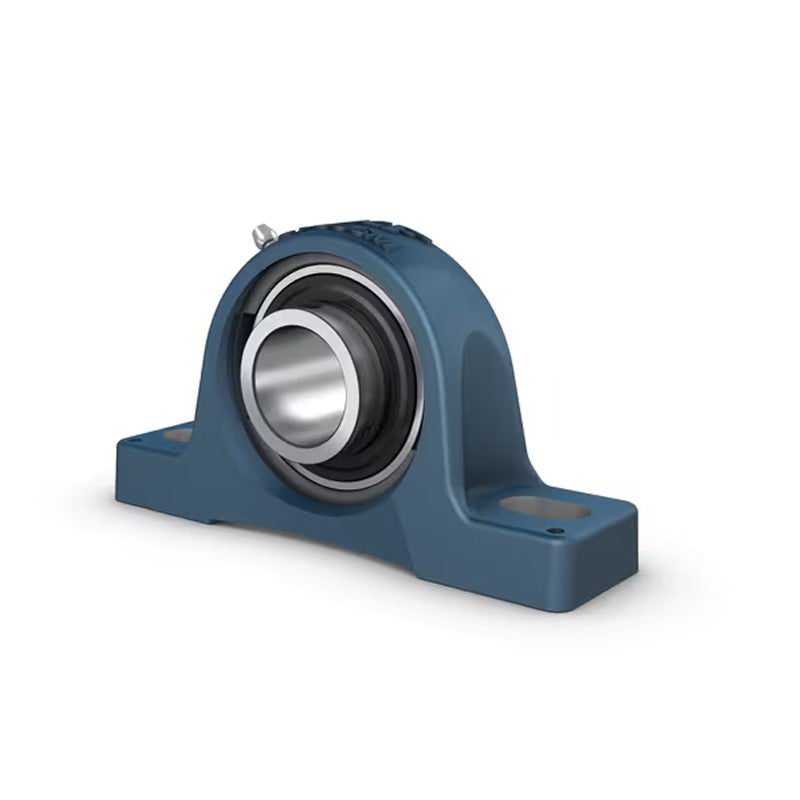

SKF SY27/16TF/VA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Imperial Shaft 2-7/16 inch
SKF SY27/16TF/VA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Imperial Shaft 2-7/16 inch
Regular price
Rs. 51,061.96
ex VAT
Regular price
Sale price
Rs. 51,061.96
ex VAT
In stock
Price Break
10+
Rs. 45,445.14
19+
Rs. 42,892.05
29+
Rs. 42,381.43
39+
Rs. 41,870.81
49+
Rs. 41,360.19
74+
Rs. 40,849.57
99+
Rs. 38,296.47
199+
Rs. 37,785.85
249+
Rs. 37,275.23
499+
Rs. 36,764.61
999+
Rs. 35,743.37
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 61.91mm = 2.437 (2-7/16) inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 2-7/16 inch |
|---|---|
| A | 60mm |
| B | 65.11mm |
| H | 139.7mm |
| H1 | 69.9mm |
| H2 | 26mm |
| J | 190.5mm |
| L | 240mm |
| N | 29mm |
| N1 | 18mm |
| G | 16mm |
| S1 | 39.7mm |
| Dynamic load C | 52.7 kN |
| Static load Co | 36 kN |
| Weight | 4.45 kg |
