SKU: SY1.TF/VA228-SKF

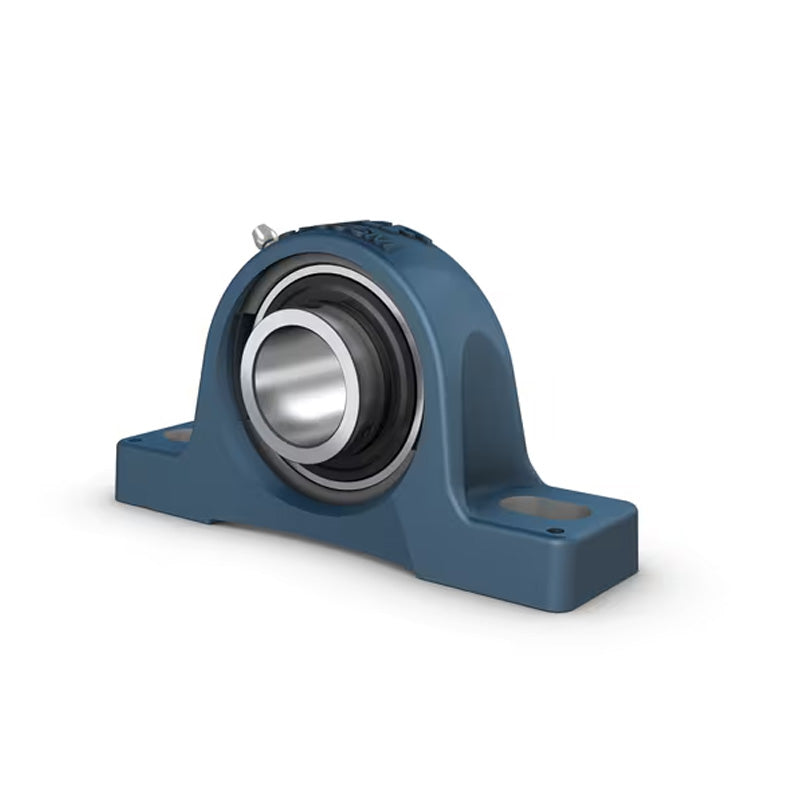

SKF SY1TF/VA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Imperial Shaft 1 inch
SKF SY1TF/VA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Imperial Shaft 1 inch
Regular price
Rs. 31,649.52
ex VAT
Regular price
Sale price
Rs. 31,649.52
ex VAT
In stock
Price Break
10+
Rs. 28,168.07
19+
Rs. 26,585.60
29+
Rs. 26,269.10
39+
Rs. 25,952.61
49+
Rs. 25,636.11
74+
Rs. 25,319.62
99+
Rs. 23,737.14
199+
Rs. 23,420.64
249+
Rs. 23,104.15
499+
Rs. 22,787.65
999+
Rs. 22,154.66
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 1 inch |
|---|---|
| A | 36mm |
| B | 34mm |
| H | 17mm |
| H1 | 36.5mm |
| H2 | 16mm |
| J | 102mm |
| L | 130mm |
| N | 19.5mm |
| N1 | 11.5mm |
| G | 10mm |
| S1 | 19.8mm |
| Dynamic load C | 14 kN |
| Static load Co | 7.8 kN |
| Weight | 0.75 kg |
