SKU: SY1.1/2TF/VA228-SKF

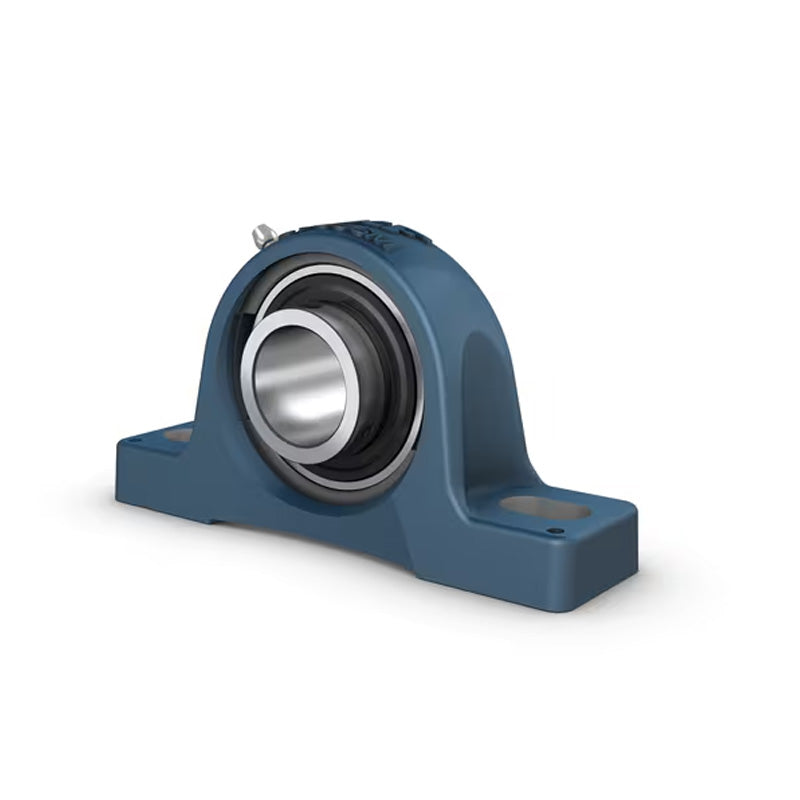

SKF SY11/2TF/VA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Imperial Shaft 1-1/2 inch
SKF SY11/2TF/VA228 Y Type Two Bolt Pillow Block Housing with Graphite Cage Insert for Imperial Shaft 1-1/2 inch
Regular price
Rs. 34,916.80
ex VAT
Regular price
Sale price
Rs. 34,916.80
ex VAT
In stock
Price Break
10+
Rs. 31,075.95
19+
Rs. 29,330.11
29+
Rs. 28,980.94
39+
Rs. 28,631.78
49+
Rs. 28,282.61
74+
Rs. 27,933.44
99+
Rs. 26,187.60
199+
Rs. 25,838.43
249+
Rs. 25,489.26
499+
Rs. 25,140.10
999+
Rs. 24,441.76
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -50 to +350 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 1-1/2 inch |
|---|---|
| A | 48mm |
| B | 49.2mm |
| H | 99mm |
| H1 | 49.2mm |
| H2 | 19mm |
| J | 135.5mm |
| L | 175mm |
| N | 24.5mm |
| N1 | 14mm |
| G | 12mm |
| S1 | 30.2mm |
| Dynamic load C | 30.7 kN |
| Static load Co | 19 kN |
| Weight | 1.84 kg |
