SKU: SUCNFL206FG1-SNR

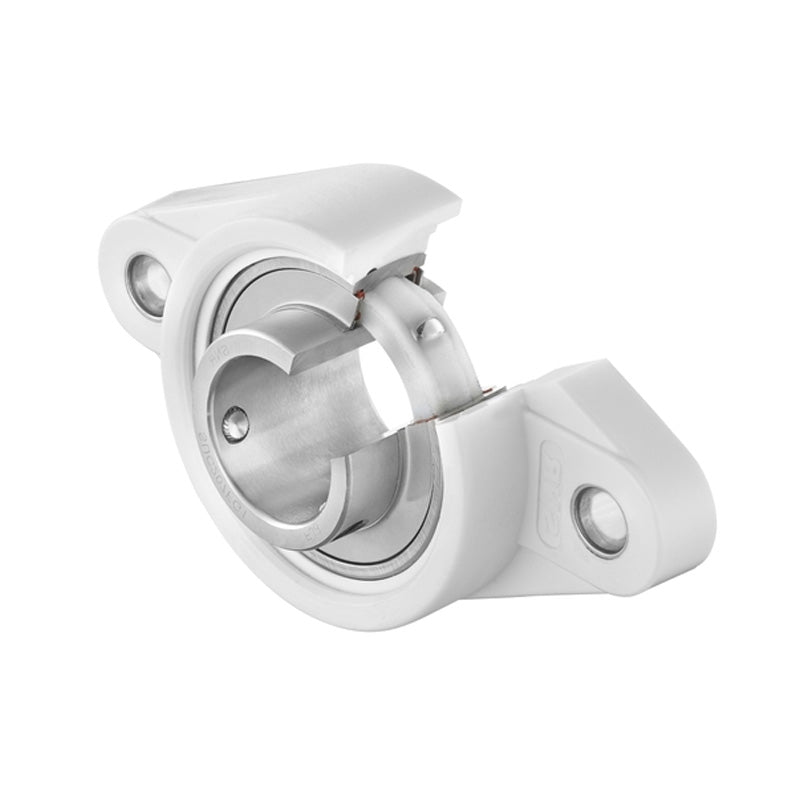

SNR SUCNFL206FG1 Metric Sentinel Thermoplastic Two Bolt Oval Flanged Bracket Housing Unit with 30mm Bore Insert - Allow 2-3 Days
SNR SUCNFL206FG1 Metric Sentinel Thermoplastic Two Bolt Oval Flanged Bracket Housing Unit with 30mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 19,854.43
Regular price
Sale price
Rs. 19,854.43
Taxes included.
In stock
Price Break
5+
Rs. 19,655.89
10+
Rs. 18,861.71
20+
Rs. 18,464.62
50+
Rs. 17,868.99
100+
Rs. 17,471.90
500+
Rs. 16,479.18
1000+
Rs. 13,898.10
Description
Description
SNR MUCNFL200 Sentinel Two Bolt Oval Thermoplastic Housing Unit: This housing is designed for durability in demanding environments. With a sturdy thermoplastic housing and a stainless steel insert ball bearing secured by socket set screws, this unit ensures reliable performance. Its innovative seal with slinger protects against contaminants, while the LUBSOLID food-grade lubricant makes it ideal for food processing applications. Experience exceptional strength and reliability with this versatile housing unit.
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 30mm
- Temperature Range:
- -10 to 80 deg C
- Style:
- SUCNFL
- Colour:
- White
- Bolt Hole Centres:
- 117.0mm
Technical
Technical
| Bore | 30mm |
|---|---|
| A - Housing height | 30.5mm |
| A1 - Housing foot height / flange height | 13.3mm |
| A2 - Total height from mounting surface | 41.2mm |
| B - Width of Inner Ring | 38.1mm |
| d - Shaft diameter | 30mm |
| e - Distance mounting surface to bearing centre | 19mm |
| H - Housing length, width or diameter | 148mm |
| J - Mounting holes distance | 117mm |
| L - Housing width / diameter | 80mm |
| N - Mounting hole dimension | 11mm |
| S - Distance front side/bearing centre | 15.9mm |
| C - Dynamic load rating | 19.4 kN |
| C0 - Static load rating | 11.2 kN |
| Operating temperature min. | -10 Deg C |
| Operating temperature max. | 80 Deg C |
| Mass | 0.43kg |
| Recommended tightening torque for set screw | 3.9 Nm |
