SKU: SUCNFL204FG1-SNR
SNR SUCNFL204FG1 Metric Sentinel Thermoplastic Four Bolt Square Flanged Bracket Housing Unit with20mm Bore Insert - Allow 2-3 Days
SNR SUCNFL204FG1 Metric Sentinel Thermoplastic Four Bolt Square Flanged Bracket Housing Unit with20mm Bore Insert - Allow 2-3 Days
Regular price
Rs. 14,183.20
Regular price
Sale price
Rs. 14,183.20
Taxes included.
In stock
Price Break
5+
Rs. 14,041.37
10+
Rs. 13,474.04
20+
Rs. 13,190.38
50+
Rs. 12,764.88
100+
Rs. 12,481.22
500+
Rs. 11,772.06
1000+
Rs. 9,928.24
Description
Description
SNR MUCNFL200 Sentinel Two Bolt Oval Thermoplastic Housing Unit: This housing is designed for durability in demanding environments. With a sturdy thermoplastic housing and a stainless steel insert ball bearing secured by socket set screws, this unit ensures reliable performance. Its innovative seal with slinger protects against contaminants, while the LUBSOLID food-grade lubricant makes it ideal for food processing applications. Experience exceptional strength and reliability with this versatile housing unit.
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 20mm
- Temperature Range:
- -10 to 80 deg C
- Style:
- SUCNFL
- Colour:
- White
- Bolt Hole Centres:
- 90.0mm
Technical
Technical

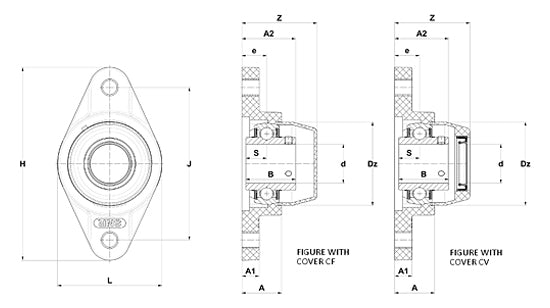

| Bore | 20mm |
|---|---|
| A - Housing height | 26.5mm |
| A1 - Housing foot height / flange height | 11.4mm |
| A2 - Total height from mounting surface | 33.7mm |
| B - Width of Inner Ring | 31mm |
| d - Shaft diameter | 20mm |
| e - Distance mounting surface to bearing centre | 15.4mm |
| H - Housing length, width or diameter | 113mm |
| J - Mounting holes distance | 90mm |
| L - Housing width / diameter | 64.8mm |
| N - Mounting hole dimension | 11mm |
| S - Distance front side/bearing centre | 12.7mm |
| C - Dynamic load rating | 12.8 kN |
| C0 - Static load rating | 6.6 kN |
| Operating temperature min. | -10 Deg C |
| Operating temperature max. | 80 Deg C |
| Mass | 0.24kg |
| Recommended tightening torque for set screw | 3.9 Nm |
