SKU: SUCFL.PL.202

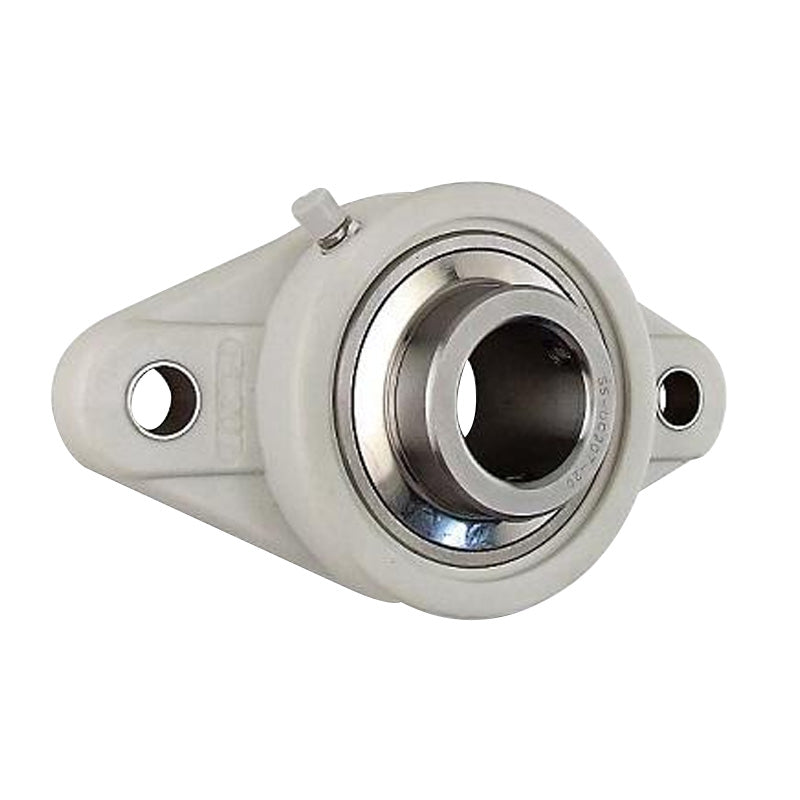

SUCFLPL202 Metric Two Bolt Oval Thermo Plastic Flange Housing with 15mm Bore Stainless Insert
SUCFLPL202 Metric Two Bolt Oval Thermo Plastic Flange Housing with 15mm Bore Stainless Insert
Regular price
Rs. 2,881.70
Regular price
Sale price
Rs. 2,881.70
Taxes included.
Equivalent to: PSFT15CR
In stock
Price Break
10+
Rs. 2,564.71
19+
Rs. 2,420.63
29+
Rs. 2,391.81
39+
Rs. 2,362.99
49+
Rs. 2,334.18
74+
Rs. 2,305.36
99+
Rs. 2,161.28
199+
Rs. 2,132.46
249+
Rs. 2,103.64
499+
Rs. 2,074.82
999+
Rs. 2,017.19
Description
Description
|
SUCFLP or SFT Series 2 Bolt Oval Thermo-Plastic Housings: Bearing unit with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. This housing unit may be supplied in either green or white. |
Equivalent: PSFT15CR
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Temperature Range:
- -35 to 102 deg C
- Bolt Hole Centres:
- 90mm
Technical
Technical
| d | 15mm |
|---|---|
| a | 113mm |
| e | 90mm |
| i | 15mm |
| g | 11mm |
| L | 25.5mm |
| S | 12mm |
| b | 60mm |
| Z | 33.3mm |
| Bi | 31.0mm |
| n | 12.7mm |
| Bolt | 10mm |
| Weight | 0.49 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
| Temperature Range | -35 to 102 deg C |
| Rec max speed | 8800 rpm |
