SKU: SUCF.PL.205-16

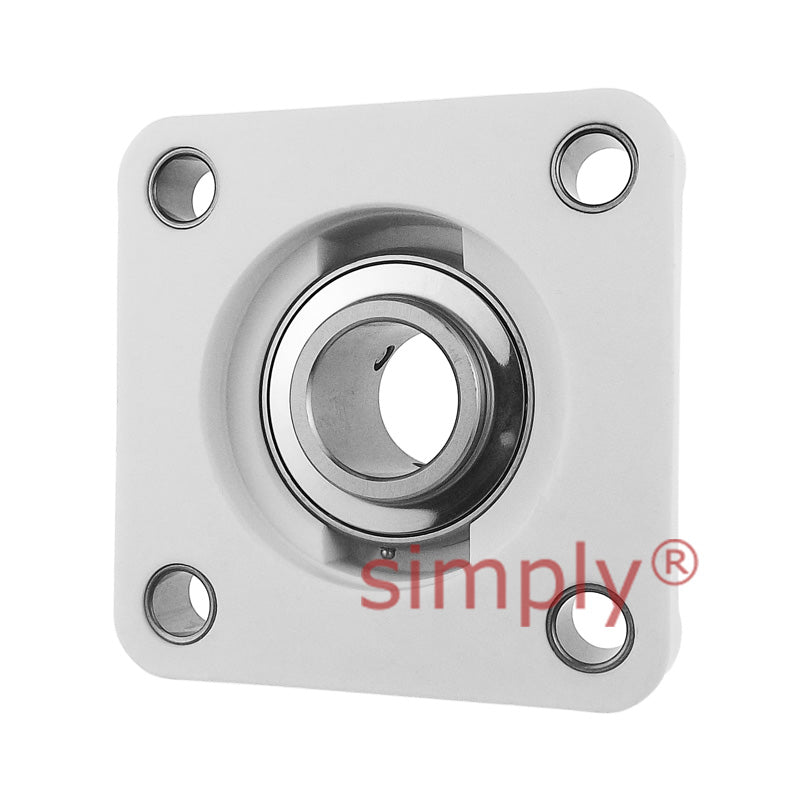

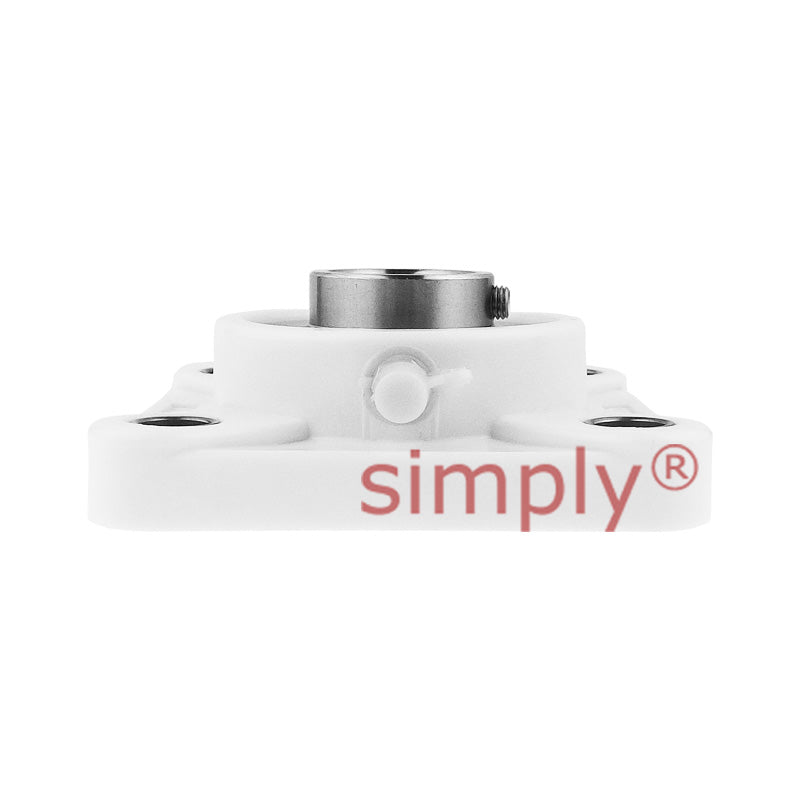

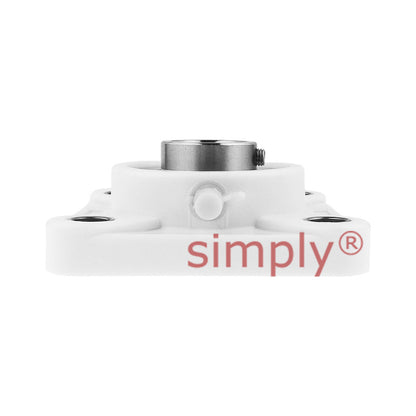

SUCFPL205-16 Metric Thermo Plastic Four Bolt Square Flange Housing with 25mm Bore Stainless Insert
SUCFPL205-16 Metric Thermo Plastic Four Bolt Square Flange Housing with 25mm Bore Stainless Insert
Regular price
Rs. 2,205.76
Regular price
Sale price
Rs. 2,205.76
Taxes included.
In stock
Price Break
10+
Rs. 1,963.13
19+
Rs. 1,852.84
29+
Rs. 1,830.78
39+
Rs. 1,808.72
49+
Rs. 1,786.67
74+
Rs. 1,764.61
99+
Rs. 1,654.32
199+
Rs. 1,632.26
249+
Rs. 1,610.20
499+
Rs. 1,588.15
999+
Rs. 1,544.03
Description
Description
SSBFPL Thermo Plastic Four Bolt Square Flange Housing with Stainless Insert: Bearing unit with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti-crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 4 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Temperature Range:
- -35 to 102 deg C
- Style:
- SUCF
- Bolt Hole Centres:
- 70mm
Technical
Technical

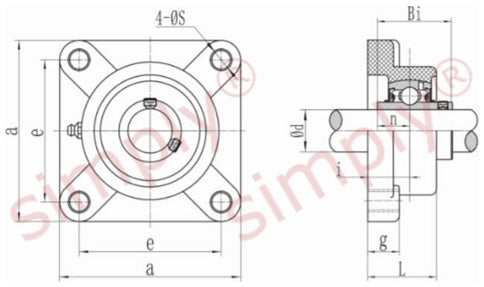

| d | 25mm |
|---|---|
| a | 95mm |
| e | 70mm |
| b | g |
| 15mm | L |
| 28mm | s |
| 11mm | i |
| Bi | 34mm |
| n | 14.5mm |
| Bolt | 10mm |
| Weight | 0.15kg |
| Temperature Range | -35 to 102 deg C |
