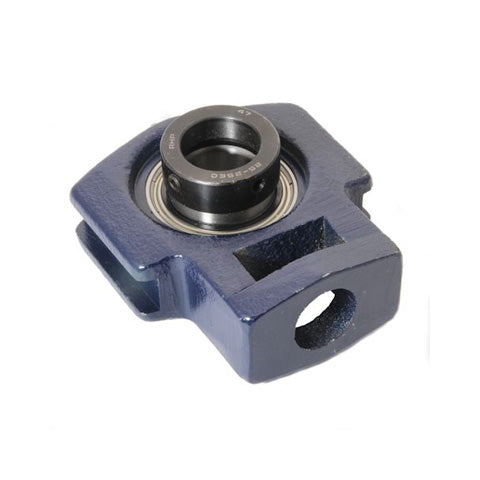

• RHP ST75DEC Cast Iron Take Up Unit and 75mm Bore Insert
1 1

SKU: ST75DEC-RHP

RHP ST75DEC Cast Iron Take Up Unit and 75mm Bore Insert

RHP ST75DEC Cast Iron Take Up Unit and 75mm Bore Insert
Rs. 43,112.85 ex VAT
Rs. 43,112.85 ex VAT
Sale Sold out

In stock

Price Break
10+ Rs. 38,370.44
19+ Rs. 36,214.79
29+ Rs. 35,783.67
39+ Rs. 35,352.54
49+ Rs. 34,921.41
74+ Rs. 34,490.28
99+ Rs. 32,334.64
199+ Rs. 31,903.51
249+ Rs. 31,472.38
499+ Rs. 31,041.25
999+ Rs. 30,179.00
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP ST DEC Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, full width insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
75mm
Style:
ST
Technical
Bore 75mm
L 222.5mm
L1 137.5mm
L2 21.5mm
L3 32mm
L4 120.5mm
L5 77mm
H 166.5mm
H1 113mm
H2 70mm
H3 150.8mm
N 42mm
A 70mm
A1 50.5mm
A2 27mm
B3 91.72mm
s2 37.37mm
d2 101.6mm
Dynamic load 66000 N
Static load 49500 N
Rec max speed 2300 rpm
Weight 8.4 kg
Insert <a href="advanced_search_result.php?keywords=1075-75DECG+insonly">1075-75DECG Click Here</a>
Casting group 12
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
