SKU: ST45EC-RHP

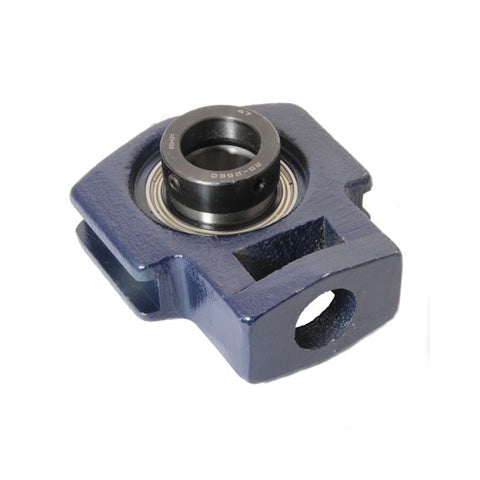

RHP ST45EC Cast Iron Take Up Unit and 45mm Bore Insert
RHP ST45EC Cast Iron Take Up Unit and 45mm Bore Insert
Regular price
Rs. 11,334.16
ex VAT
Regular price
Sale price
Rs. 11,334.16
ex VAT
In stock
Price Break
10+
Rs. 10,087.40
19+
Rs. 9,520.69
29+
Rs. 9,407.35
39+
Rs. 9,294.01
49+
Rs. 9,180.67
74+
Rs. 9,067.33
99+
Rs. 8,500.62
199+
Rs. 8,387.28
249+
Rs. 8,273.94
499+
Rs. 8,160.60
999+
Rs. 7,933.91
Couldn't load pickup availability
Description
Description
|
RHP ST EC Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 45mm
- Style:
- ST
Technical
Technical
| Bore | 45mm |
|---|---|
| L | 147mm |
| L1 | 89.2mm |
| L2 | 15.5mm |
| L3 | 20.5mm |
| L4 | 81.5mm |
| L5 | 50.5mm |
| H | 118mm |
| H1 | 82.5mm |
| H2 | 49.5mm |
| H3 | 101mm |
| N | 29mm |
| A | 49.5mm |
| A1 | 37mm |
| A2 | 17.5mm |
| B2 | 43.64mm |
| s1 | 11.05mm |
| d2 | 63.5mm |
| Dynamic load | 32500 N |
| Static load | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 2.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1245-45ECG+insonly">1245-45ECG Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
