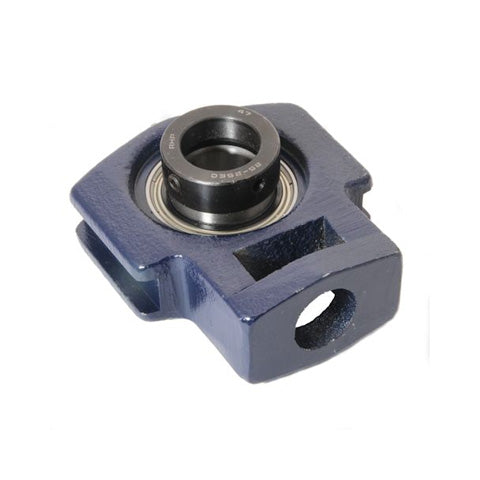

• RHP ST45DEC Cast Iron Take Up Unit and 45mm Bore Insert
1 1

SKU: ST45DEC-RHP

RHP ST45DEC Cast Iron Take Up Unit and 45mm Bore Insert

RHP ST45DEC Cast Iron Take Up Unit and 45mm Bore Insert
Rs. 12,378.93 ex VAT
Rs. 12,378.93 ex VAT
Sale Sold out

In stock

Price Break
10+ Rs. 11,017.25
19+ Rs. 10,398.30
29+ Rs. 10,274.51
39+ Rs. 10,150.72
49+ Rs. 10,026.93
74+ Rs. 9,903.14
99+ Rs. 9,284.20
199+ Rs. 9,160.41
249+ Rs. 9,036.62
499+ Rs. 8,912.83
999+ Rs. 8,665.25
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP ST DEC Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, full width insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
45mm
Style:
ST
Technical
Bore 45mm
L 147mm
L1 89.2mm
L2 15.5mm
L3 20.5mm
L4 81.5mm
L5 50.5mm
H 118mm
H1 82.5mm
H2 49.5mm
H3 101mm
N 29mm
A 49.5mm
A1 37mm
A2 17.5mm
B3 56.34mm
s2 21.46mm
d2 63.5mm
Dynamic load 32500 N
Static load 20500 N
Rec max speed 3700 rpm
Weight 2.8 kg
Insert <a href="advanced_search_result.php?keywords=1045-45DECG+insonly">1045-45DECG Click Here</a>
Casting group 7
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
