• RHP ST35EC Cast Iron Take Up Unit and 35mm Bore Insert
1 1

SKU: ST35EC-RHP

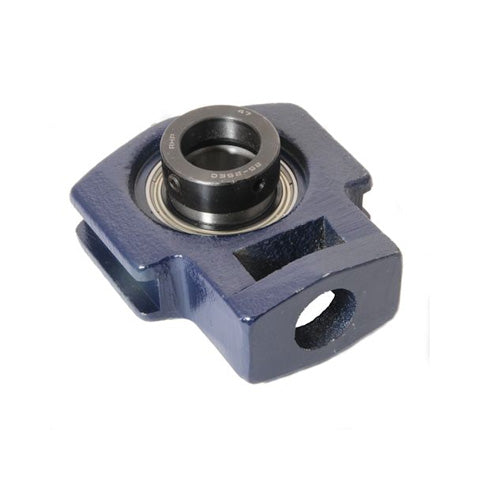

RHP ST35EC Cast Iron Take Up Unit and 35mm Bore Insert

RHP ST35EC Cast Iron Take Up Unit and 35mm Bore Insert
Rs. 8,134.00 ex VAT
Rs. 8,134.00 ex VAT
Sale Sold out

In stock

Price Break
10+ Rs. 7,239.26
19+ Rs. 6,832.56
29+ Rs. 6,751.22
39+ Rs. 6,669.88
49+ Rs. 6,588.54
74+ Rs. 6,507.20
99+ Rs. 6,100.50
199+ Rs. 6,019.16
249+ Rs. 5,937.82
499+ Rs. 5,856.48
999+ Rs. 5,693.80
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP ST EC Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, flat back insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
35mm
Style:
ST
Technical
Bore 35mm
L 124mm
L1 75.5mm
L2 12.5mm
L3 16.5mm
L4 64.5mm
L5 43mm
H 101.5mm
H1 64.5mm
H2 37.5mm
H3 89mm
N 22.5mm
A 36.5mm
A1 30mm
A2 13.5mm
B2 38.88mm
s1 9.55mm
d2 55.58mm
Dynamic load 25700 N
Static load 15300 N
Rec max speed 4500 rpm
Weight 1.6 kg
Insert <a href="advanced_search_result.php?keywords=1235-35ECG+insonly">1235-35ECG Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
