• RHP ST25A Cast Iron Take Up Unit and 25mm Bore Insert
1 1

SKU: ST25A-RHP

RHP ST25A Cast Iron Take Up Unit and 25mm Bore Insert

RHP ST25A Cast Iron Take Up Unit and 25mm Bore Insert
Rs. 5,713.93 ex VAT
Rs. 5,713.93 ex VAT
Sale Sold out

In stock

Price Break
10+ Rs. 5,085.40
19+ Rs. 4,799.70
29+ Rs. 4,742.56
39+ Rs. 4,685.42
49+ Rs. 4,628.28
74+ Rs. 4,571.14
99+ Rs. 4,285.45
199+ Rs. 4,228.31
249+ Rs. 4,171.17
499+ Rs. 4,114.03
999+ Rs. 3,999.75
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

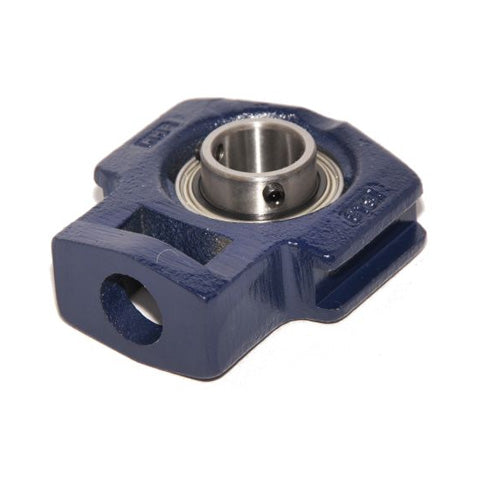

RHP ST A Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, flat back insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
25mm
Style:
ST
Technical
Bore 25mm
L 98mm
L1 62mm
L2 11.5mm
L3 16mm
L4 50.5mm
L5 36.5mm
H 88.5mm
H1 58.5mm
H2 32mm
H3 76mm
N 22.5mm
A 36mm
A1 27.5mm
A2 13.5mm
B1 27.35mm
s1 7.56mm
d1 34.01mm
Dynamic load 14000 N
Static load 7880 N
Rec max speed 6250 rpm
Weight 1 kg
Insert <a href="advanced_search_result.php?keywords=1225-25G+insonly">1225-25G Click Here</a>
Casting group 3
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
