SKU: ST1.7/16-RHP

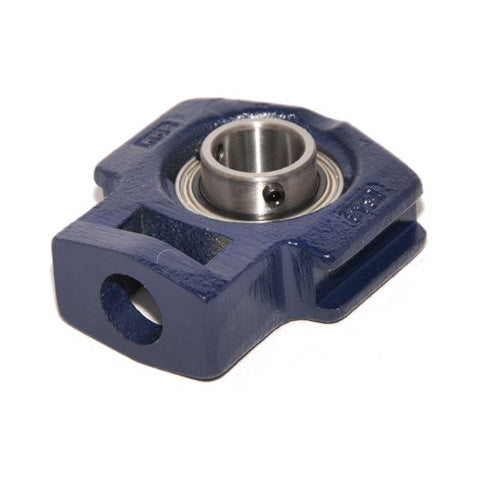

RHP ST1-7/16 Cast Iron Take Up Unit and 1-7/16 inch Bore Insert
RHP ST1-7/16 Cast Iron Take Up Unit and 1-7/16 inch Bore Insert
Regular price
Rs. 8,259.37
ex VAT
Regular price
Sale price
Rs. 8,259.37
ex VAT
In stock
Price Break
10+
Rs. 7,350.84
19+
Rs. 6,937.87
29+
Rs. 6,855.28
39+
Rs. 6,772.68
49+
Rs. 6,690.09
74+
Rs. 6,607.50
99+
Rs. 6,194.53
199+
Rs. 6,111.93
249+
Rs. 6,029.34
499+
Rs. 5,946.75
999+
Rs. 5,781.56
Couldn't load pickup availability
Description
Description
|
RHP ST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Style:
- ST
Technical
Technical
| Bore | 1-7/16 inch |
|---|---|
| L | 4.882 inch |
| L1 | 2.972 inch |
| L2 | 0.492 inch |
| L3 | 0.65 inch |
| L4 | 2.539 inch |
| L5 | 1.693 inch |
| H | 3.996 inch |
| H1 | 2.539 inch |
| H2 | 1.476 inch |
| H3 | 3.504 inch |
| N | 0.886 inch |
| A | 1.437 inch |
| A1 | 1.181 inch |
| A2 | 0.531 inch |
| B | 1.688 inch |
| s | 0.69 inch |
| d1 | 1.838 inch |
| Dynamic load | 25700 N |
| Static load | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.6 kg |
| Insert | <a href="advanced_search_result.php?keywords=1035-1-7/16G+insonly">1035-1-7/16G Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
