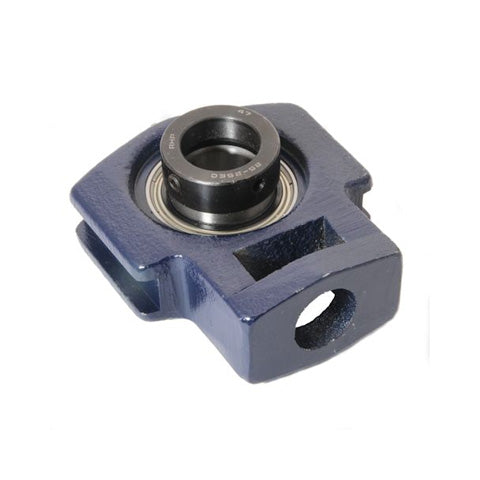

• RHP ST1-1/4DEC Cast Iron Take Up Unit and 1-1/4 inch Bore Insert
1 1

SKU: ST1.1/4DEC-RHP

RHP ST1-1/4DEC Cast Iron Take Up Unit and 1-1/4 inch Bore Insert

RHP ST1-1/4DEC Cast Iron Take Up Unit and 1-1/4 inch Bore Insert
Rs. 9,563.75 ex VAT
Rs. 9,563.75 ex VAT
Sale Sold out

In stock

Price Break
10+ Rs. 8,511.74
19+ Rs. 8,033.55
29+ Rs. 7,937.91
39+ Rs. 7,842.28
49+ Rs. 7,746.64
74+ Rs. 7,651.00
99+ Rs. 7,172.81
199+ Rs. 7,077.18
249+ Rs. 6,981.54
499+ Rs. 6,885.90
999+ Rs. 6,694.63
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP ST DEC Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, full width insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
31.75mm = 1.25 (1-1/4) inch
Style:
ST
Technical
Bore 1-1/4 inch
L 4.882 inch
L1 2.972 inch
L2 0.492 inch
L3 0.65 inch
L4 2.539 inch
L5 1.693 inch
H 3.996 inch
H1 2.539 inch
H2 1.476 inch
H3 3.504 inch
N 0.886 inch
A 1.437 inch
A1 1.181 inch
A2 0.531 inch
B3 2.015 inch
s2 0.744 inch
d2 2.188 inch
Dynamic load 25700 N
Static load 15300 N
Rec max speed 4500 rpm
Weight 1.6 kg
Insert <a href="advanced_search_result.php?keywords=1035-1-1/4DECG+insonly">1035-1-1/4DECG Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
